OMS-800 OFFISS

Operation Microscope

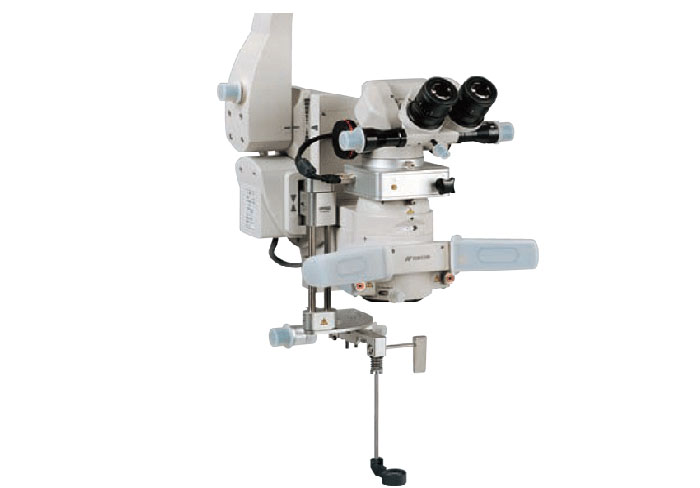

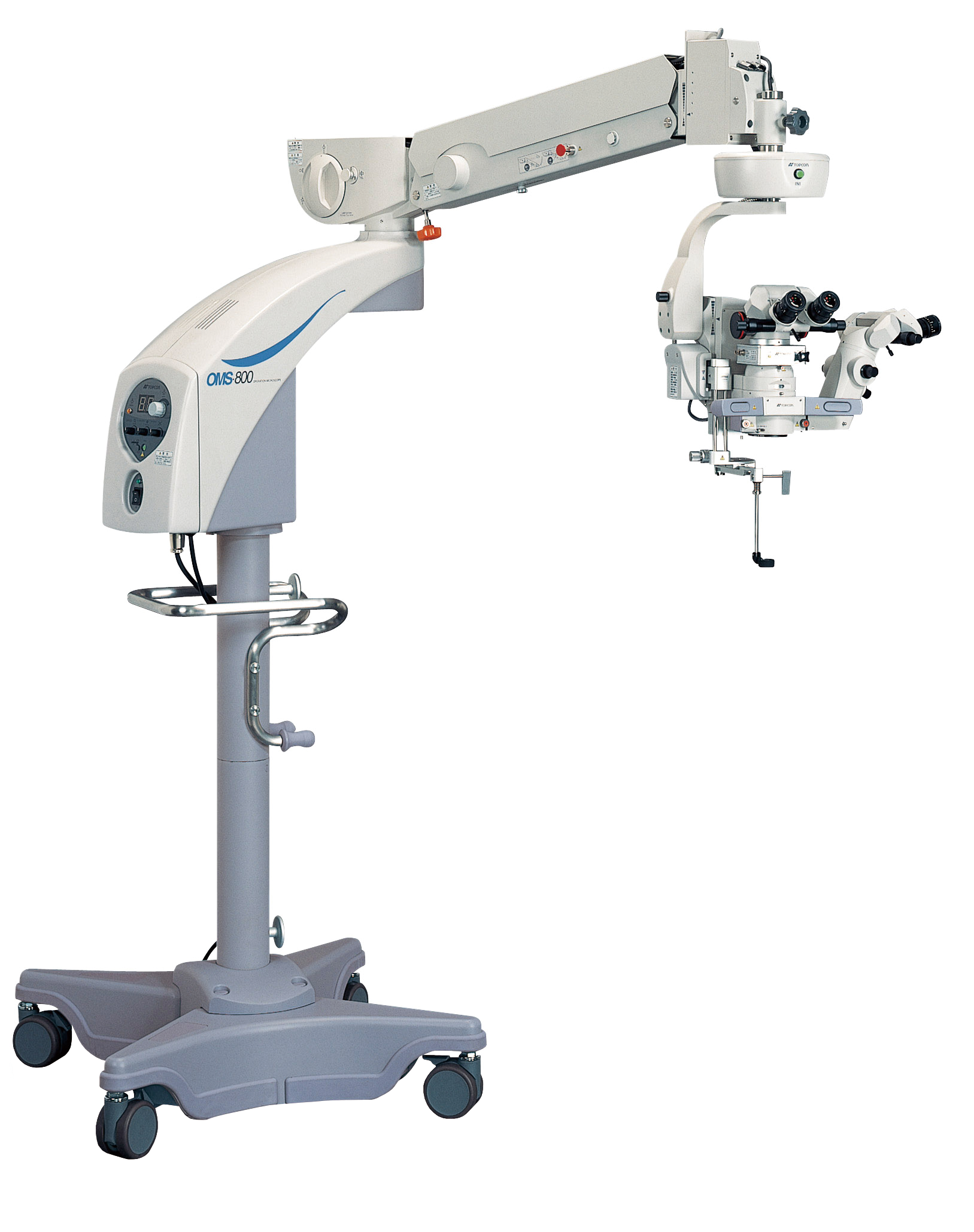

The Topcon OMS-800 OFFISS is an outstanding microscope for intravitreal surgery and other ophthalmic procedures. OFFISS stands for Optical Fiber Free Intravitreal Surgery System and offers a bi-manual vitrectomy, which is easier, safer, and faster.

The OFFISS lens system consists of several lenses which offer a wide field, and stereoscopic observation. A yellow filter and 3-directional illumination (±20 & 40) ensure a versatile illumination system

The Topcon OMS-800 OFFISS has a variable angle binocular tube, electromagnetic brakes, and an X-Y translator incorporated. The motorized fast focusing mechanism allows the optical to be quickly elevated during surgery. A compact and stable footprint combined with a long microscope arm ensures a flexible set up in the operation theatre. The multifunctional footswitch can be customized for the Doctor’s preference.

Dynamic intra operative fluorescein observation is possible by attaching the FAG filter assembly to the OMS-800 OFFISS. With this attachment the surgeon can have a fluorescein angiogram performed while the eye is being operated on, asserting the real condition of the retina at that time.

Key Features

  • OFFISS (Optical Fiber Free Intravitreal Surgery System)
  • Stereo variator
  • Slit illumination
  • Electromagnetic locking system
  • Dual motorized focusing systems
  • Stain-proof coated objective lens
  • 3-directional illumination (±20 & 40)
  • Yellow filter for protection against phototoxicity
  • XY-translator
  • Multifunction footswitch
COMPONENTS:
OMS-800 OFFISS OMS-800 STD
OFFISS
Electromagnetic locking
Coarse focusing
Inverter
Apochromatic optics
Beam splitter
Changeable beam splitter
Illumination angle Full Illumination (±2°,±4°) / ±2°/ Yellow Filter (+4°)
FLOOR TYPE:
Microscope type Gallileo type
Magnification change type Electric zoom continuous change
Eyepiece 12.5x
Objective lens f=200mm
Display magnification 4.2/5/6/7/8/9/10/11/13/15/17/19/21
Total magnification 4.2x~21x
  • Clinical Paper

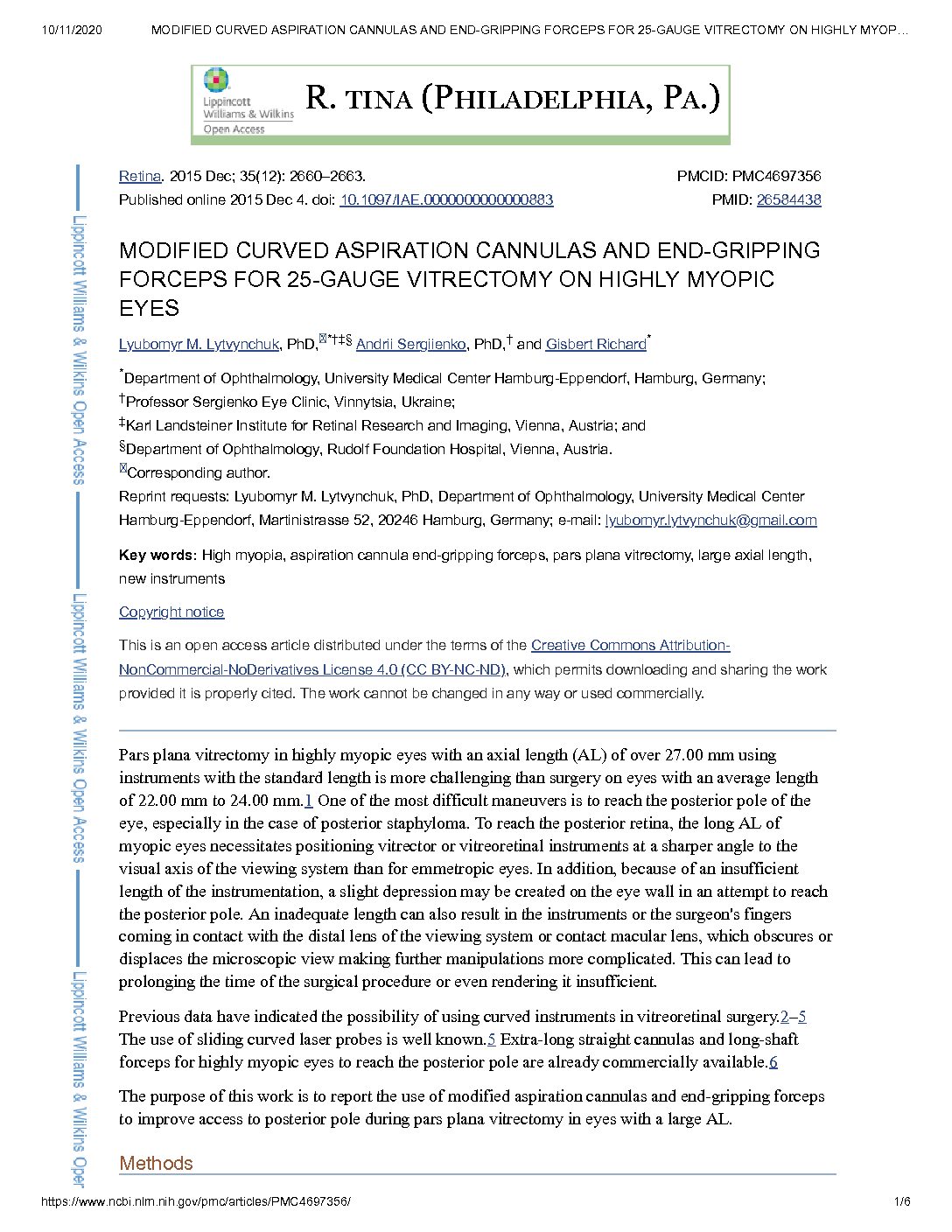

    • Modified curved aspiration cannulas and end-gripping forceps for 25-gauge vitrctomy on highly myopic eyes


    • OFFISS: Optical Fiber Free Intravitreal Surgery System

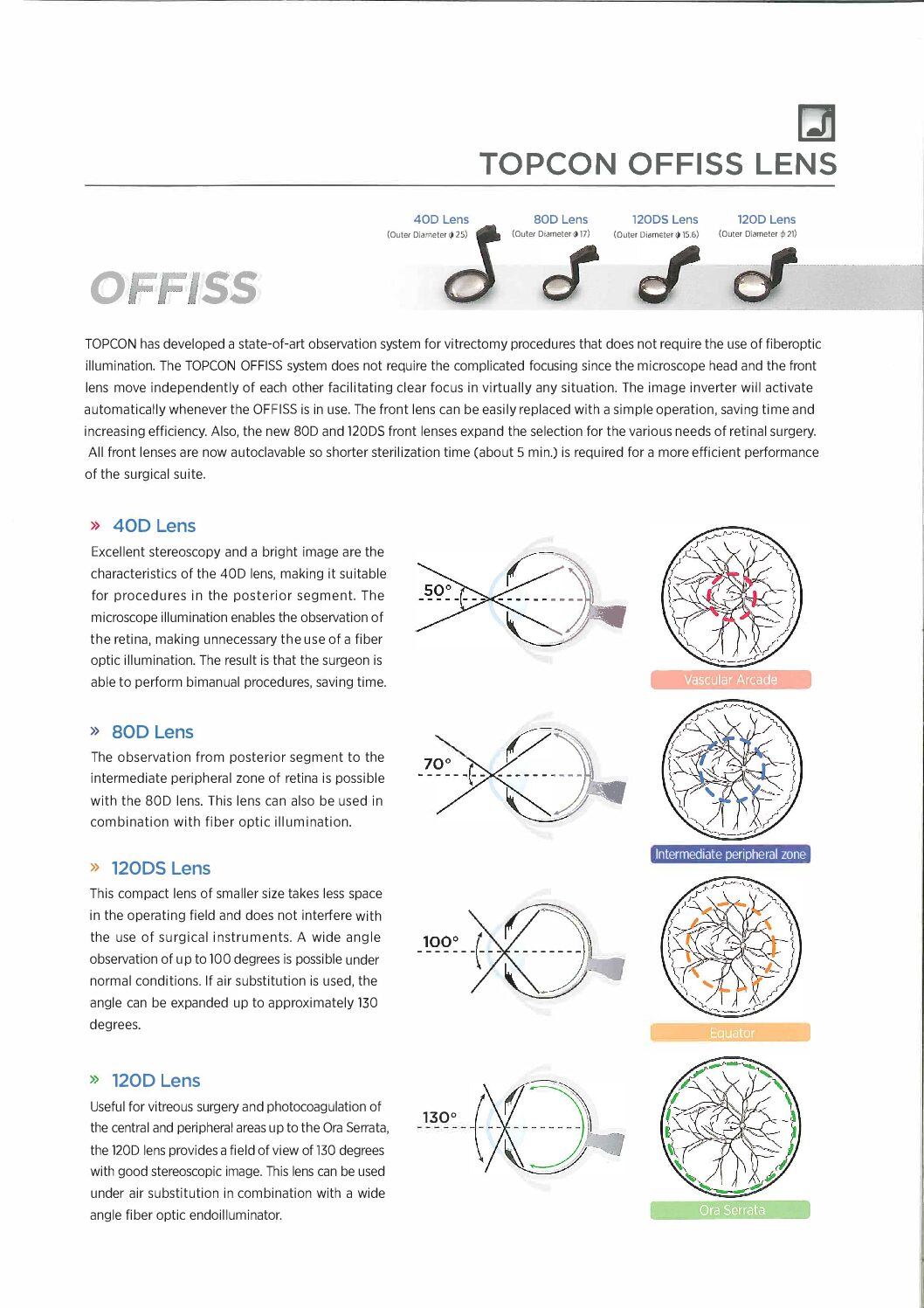

  • Topcon OFFISS Lens

Not Available

Optional Accessories

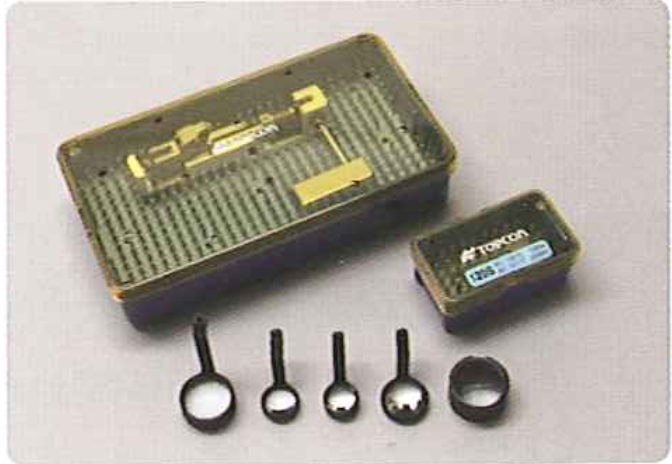

Front Lens Set

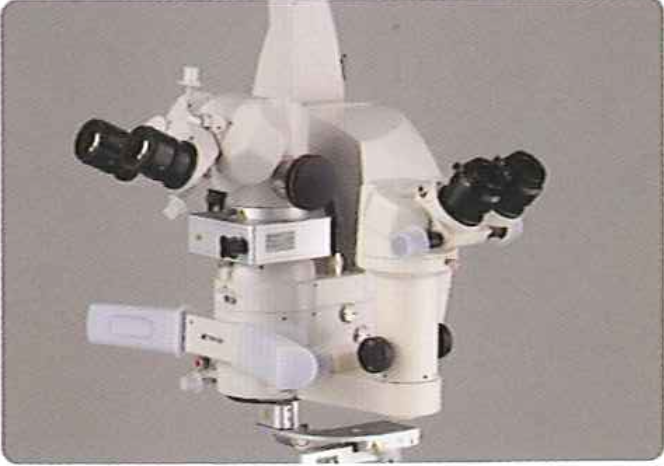

Coaxial assistant microscope

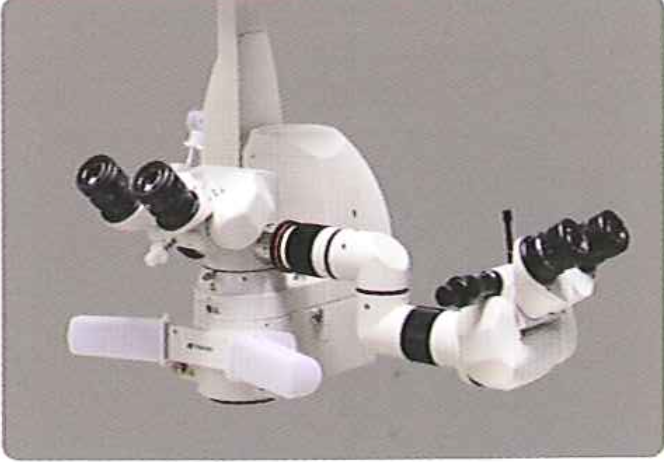

Coaxial assistant microscope

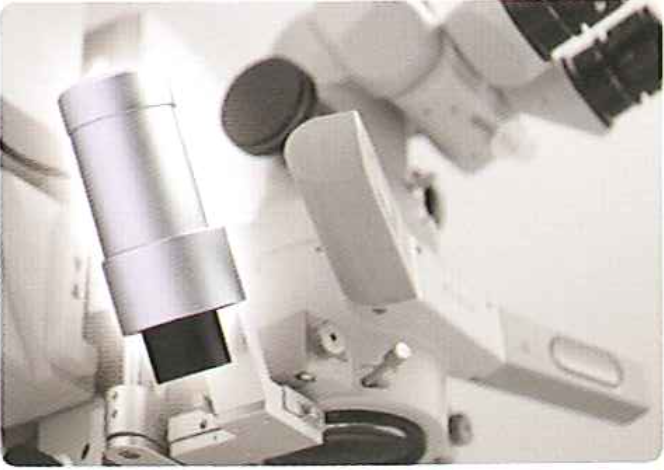

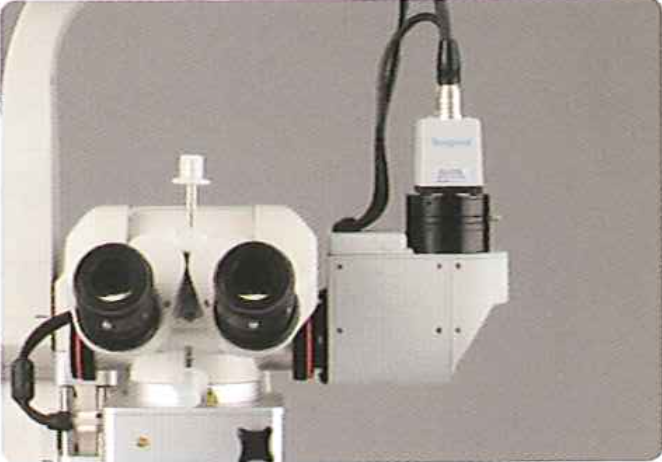

TV relay lens

MS-SI01 Slit Illuminator
