Wave-Front Analyzer

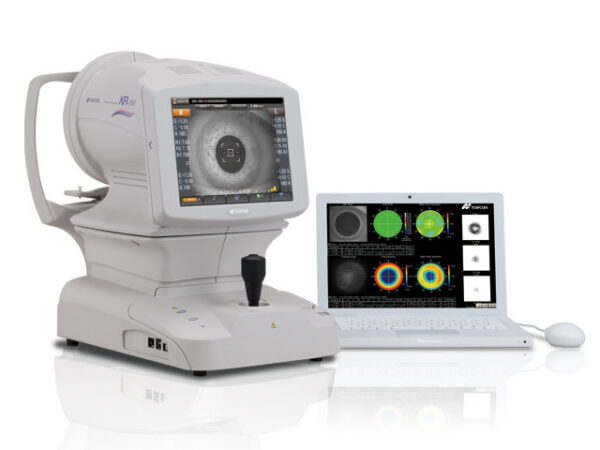

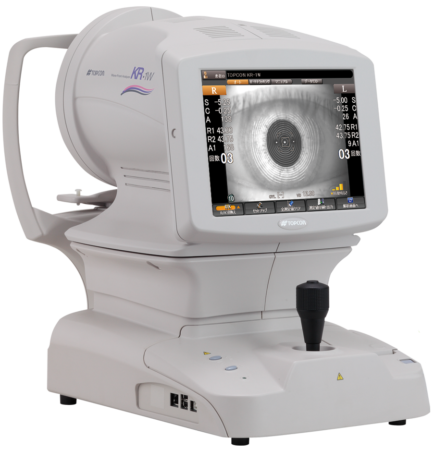

The Topcon KR-1W is the only wavefront & topography system to offer both refractive and diagnostic functionalities. It can be used for wavefront aberration, corneal topography, pupillometry, keratometry, and auto-refraction. All measurements are performed by one push on the joystick.

This 5 in 1 unit provides you with the ideal tool to diagnose; follow up; and make treatment plans for a broad range of ocular conditions, resulting in increased efficiency in your practice and patient satisfaction. The Topcon KR-1W will help speed up your workflow, improve communication with patients, and monitor the outcomes of your treatments.

The KR-1W wavefront & topography system has an auto-alignment system, for increased ease of use and user friendly operation.

Key Features

  • 5 functions in 1 (wavefront aberrometry, corneal topography, refractometry, keratometry, and pupillometry)
  • Unsurpassed reproducibility and reliability
  • Decision support for cataract and refractive procedures
  • Wavefront image sequence
  • Simulated visual acuity (VA) assessment
  • Full auto-alignment
  • Easy operation and handling
  • Integrated evaluation software
  • IMAGEnet i-base connection
Sphere Range -25D~+22D (0.01D/0.12D/0.25D steps)*
Cylinder Range 0D~±10D (0.01D/0.12D/0.25D steps)*
Axis Range 0⁰~180⁰ (1⁰/5⁰ steps)
Measurable Area ø8mm (max.)
Measurable Minimum Pupil Diameter ø2mm
Corneal Curvature Radius 5.00mm~10.00mm (0.01mm steps)
Corneal Refraction 67.5D~33.75D (0.01D/0.12D/0.25D steps)
(Proviso: corneal refractive index = 1.3375)
Corneal Astigmatism 0D~±10D (0.01D/0.12D/0.25D steps)
Corneal Astigmatism Axial Angle 0⁰~180⁰ (1⁰/5⁰ steps)
Measurable Corneal Area ø8mm~ø9.2mm (Proviso Radius corneal curvature=8mm)
Measurable PD Range 20~85mm (1mm step)
  • Clinical Papers

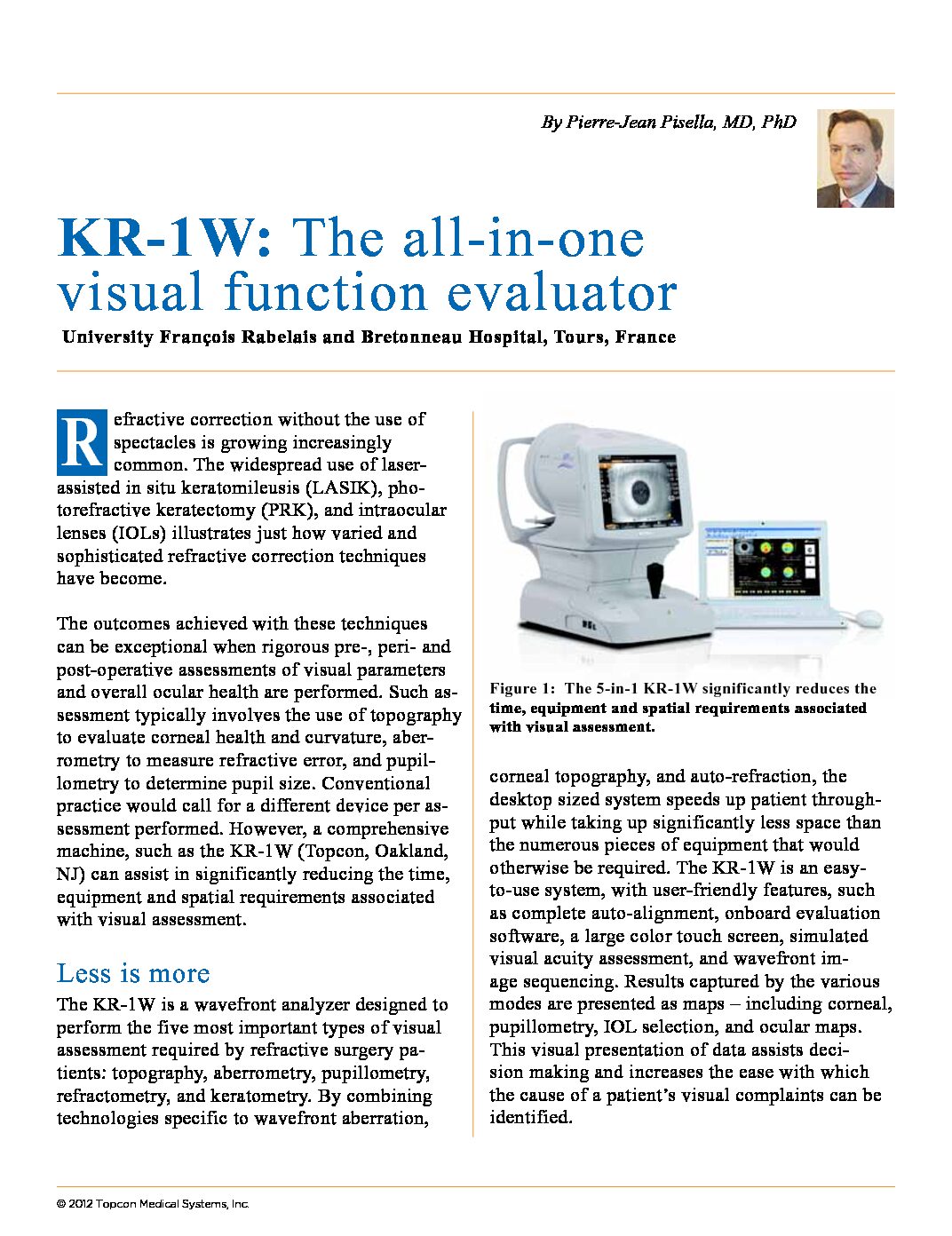

    • KR-1W: The all-in-one visual function evaluator

  • Case Report

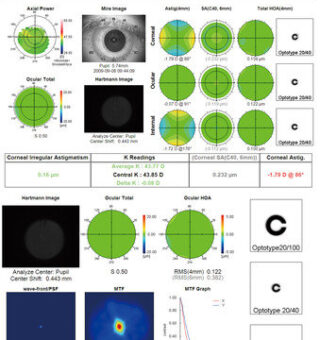

    • Case Report: Toric IOL

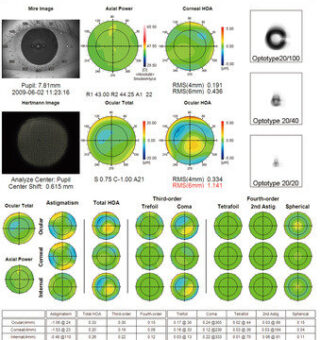

    • Case Report: Cortical Cataract

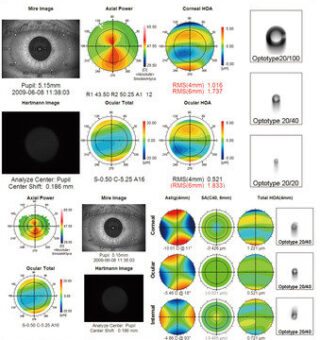

    • Case Report: Keratoconous

Product Demo

Wavefront Analyzer KR-1W
