OMS-90
Operation Microscope

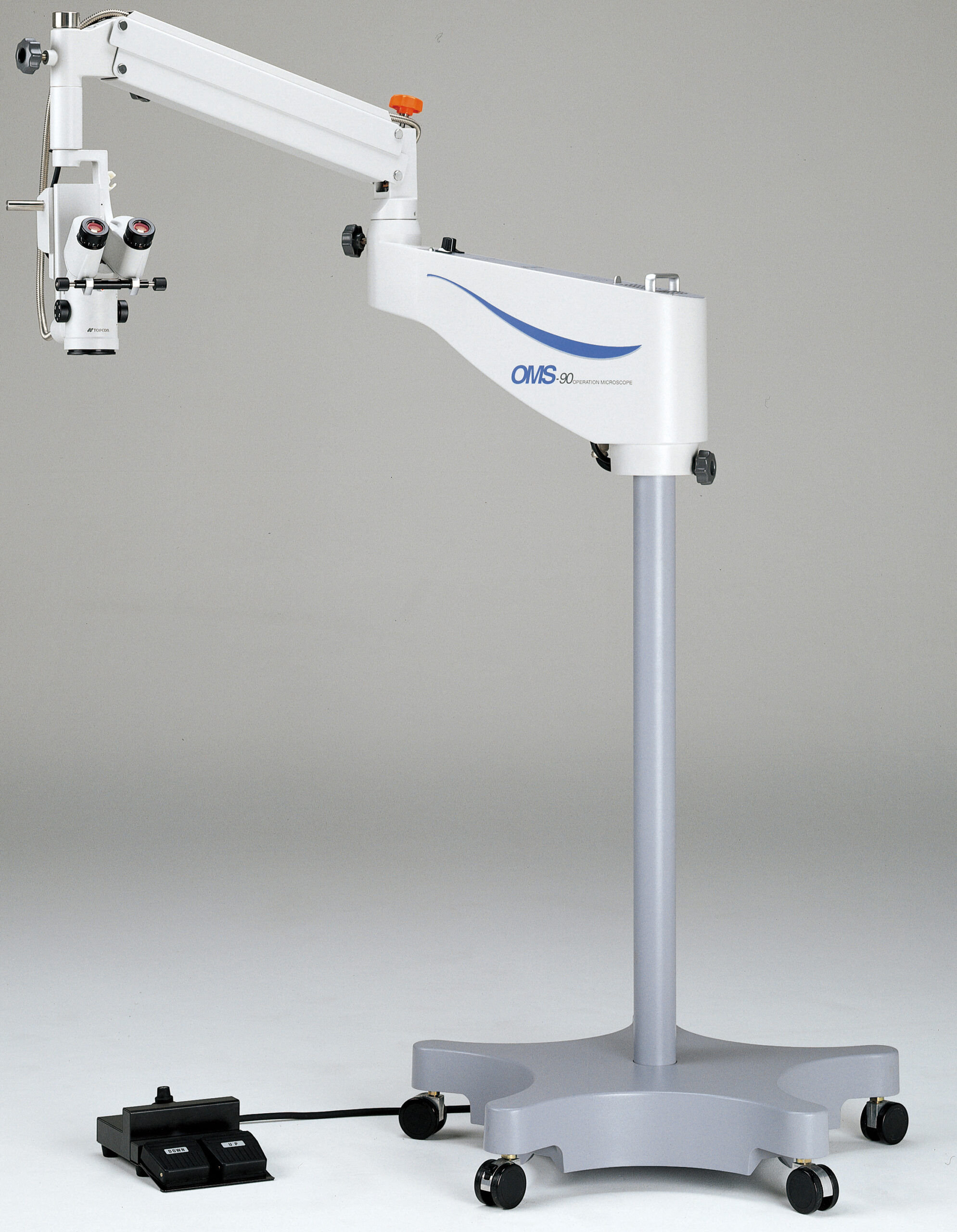

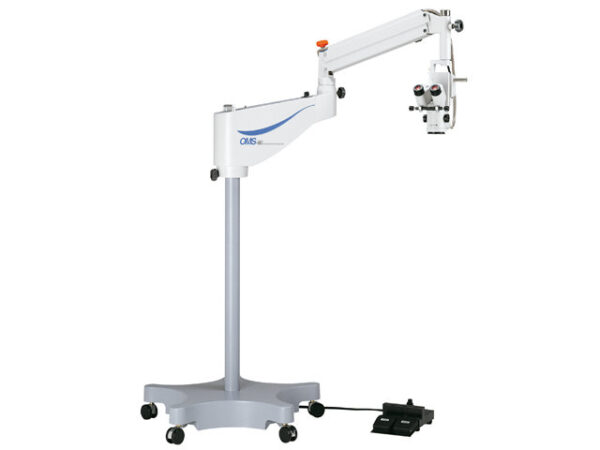

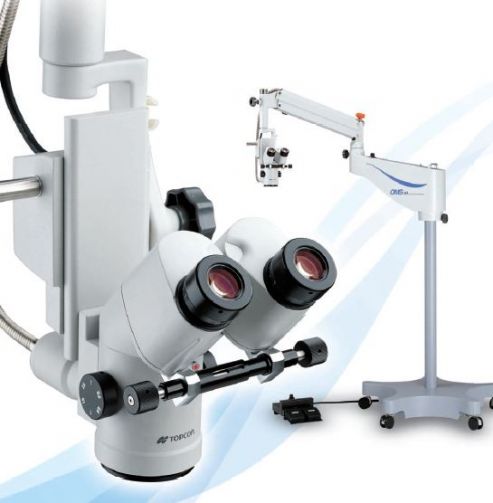

The OMS-90 is Topcon’s basic ophthalmic microscope. The Topcon OMS-90 has a parallel binocular, a built in yellow filter, a five step magnification, and a newly designed coaxial illumination. The red reflex is good, thanks to the coaxial illumination.
The Topcon OMS-90 can be extended with an XY translator, assistant’s microscope and camera attachments.
Key Features
- New coaxial illumination
- Stain-proof coated objective lens
- Parallel binocular tube
- Built-in yellow filter
- Focal length of 200mm
- Compact footprint
| Binocular tube | Parallel 45° inclined binocular tube |
| Objective lens | F=200mm |
| Eyepiece | 12.5x |
| Magnification change type | Drum type with 5 charges |
| Total magnification | 3.4x, 5.3x, 8.5x, 13.6x, 21.2x |
| Field of view | ø66.3, ø42.3, ø26.3, ø17.1, ø10.3mm |
| X-Y translator (option) | Range: ±25mm |
| Light source | Halogen lamp |
| Filter | Built in: Heat-absorbing and UV cut filters. Flip-in/out: yellow filter |
Not Available
Not Available
Optional Accessories

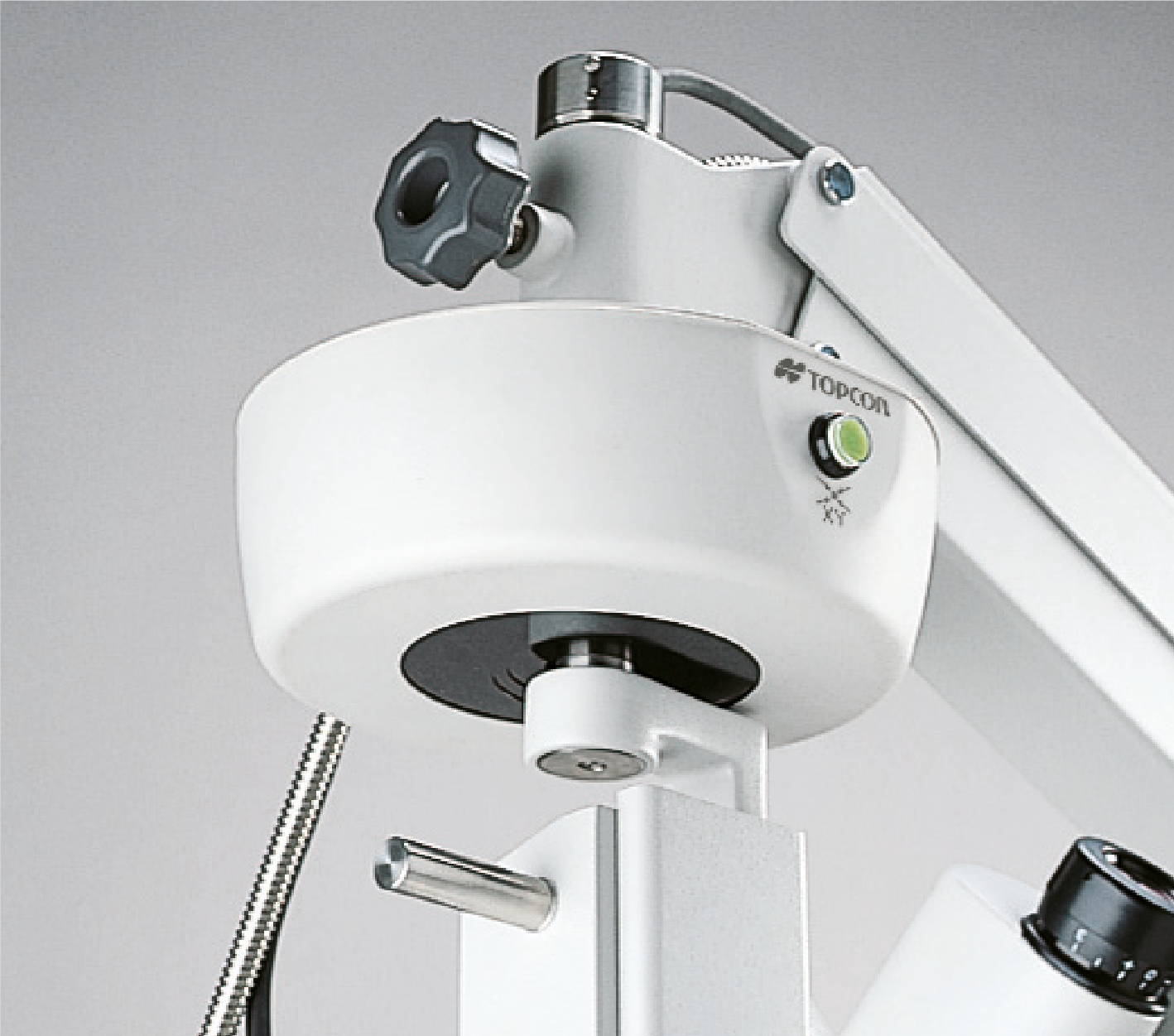

XY Translator

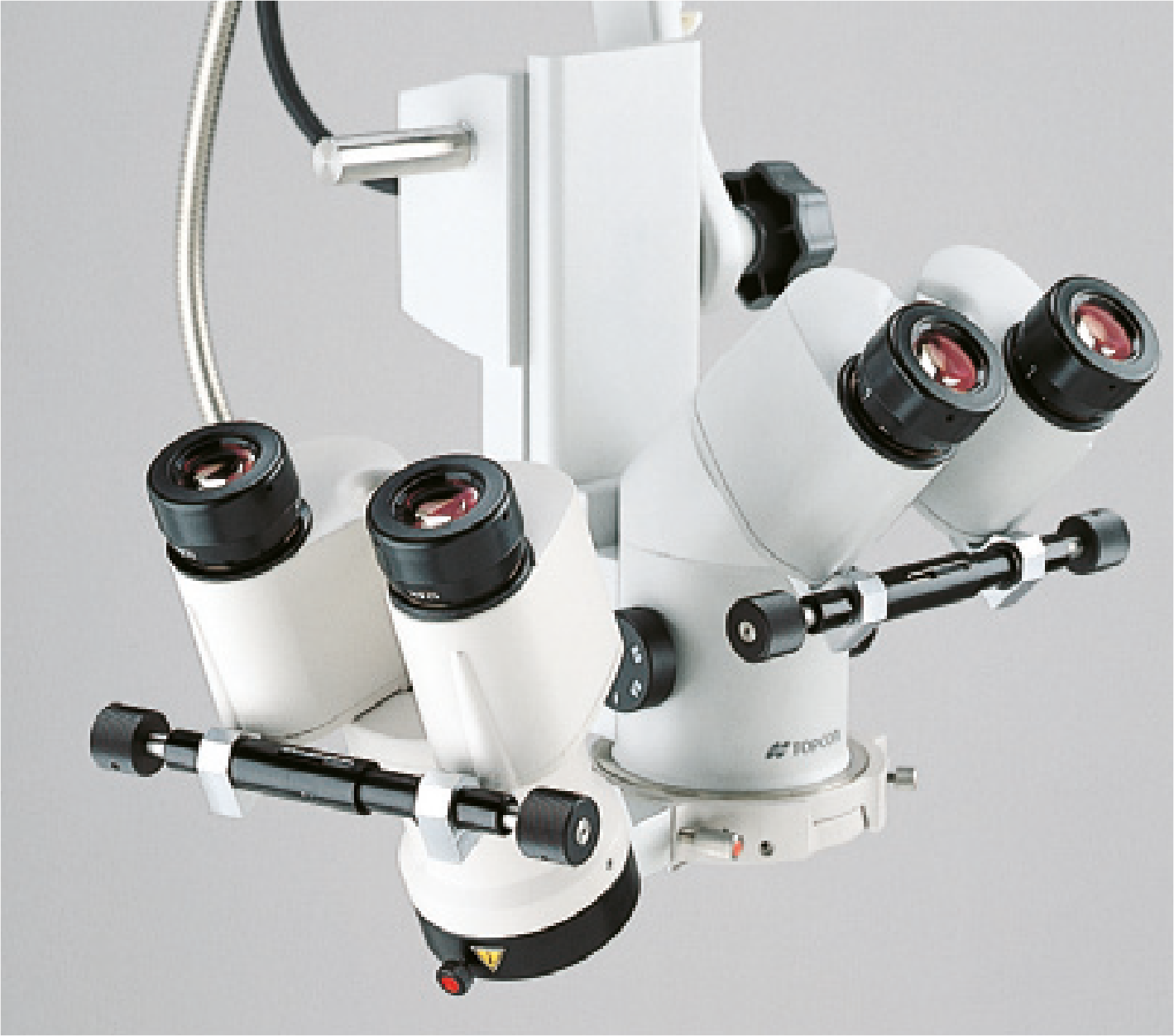

Assistant Microscope

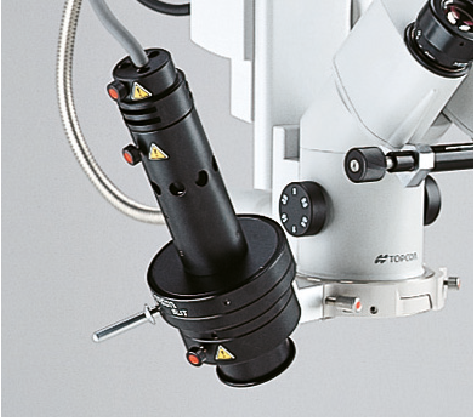

Oblique Illuminator
