TRK-2P

Auto Kerato-Refracto Tonometer

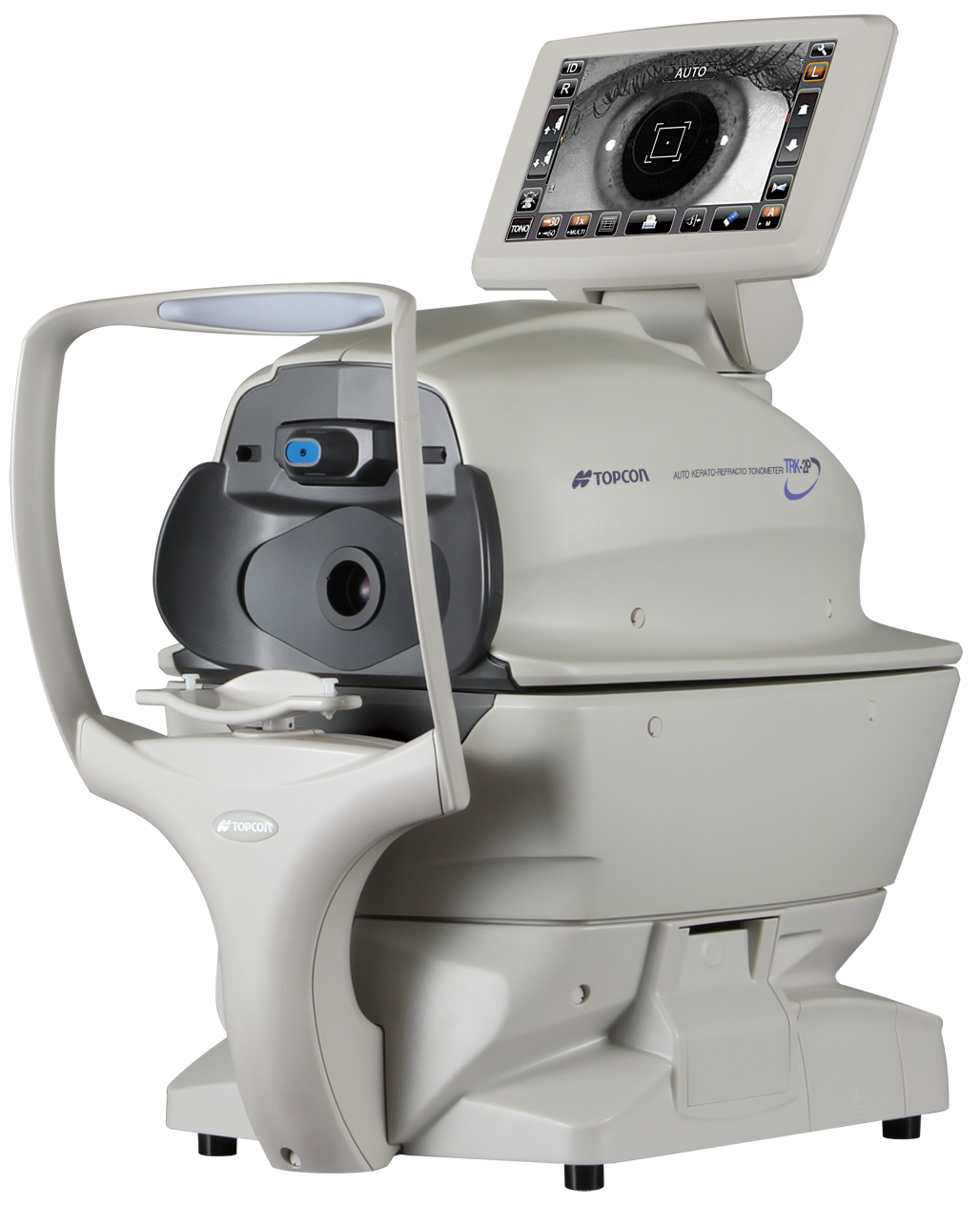

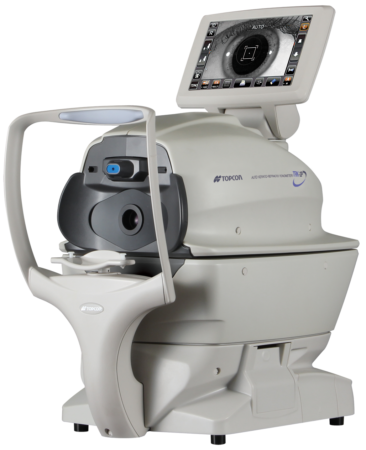

The TRK-2P combines a refractometer, a keratometer, a non-contact tonometer and a pachymeter in one compact instrument. The TRK-2P features a fully auto alignment system with auto measurement function. The compact size and 8,5” rotating color touch screen control panel offers total flexibility for the operator and also for instrument location. With just one touch of the fingertip on the control panel, the TRK-2P will measure both eyes accurately due to Topcon’s exclusive Rotary Prism Technology.

Cataract mode

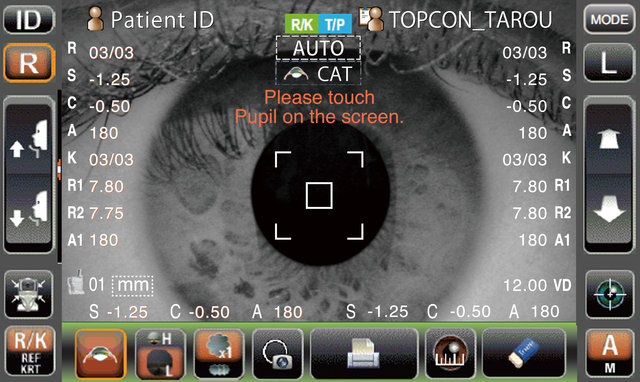

The TRK-2P has a built-in function that allows measurement of patients who have a cataract or an opacity. This function works automatically or manually.

Soft air-puff
Improved nozzle design and software control the optimal amount of air required for every IOP measurement. A softer air puff improves patient comfort and results in an improved measurement experience.

Adjusted IOP based upon pachymetry
The built-in pachymeter function can be used to adjust the measured IOP value, depending on the cornea: if it is thicker or thinner than average. The integrated formula for IOP adjustment can be customized by the eye care practitioner.

Key Features

  • 4 in 1: refraction, keratometry, tonometry and pachymetry

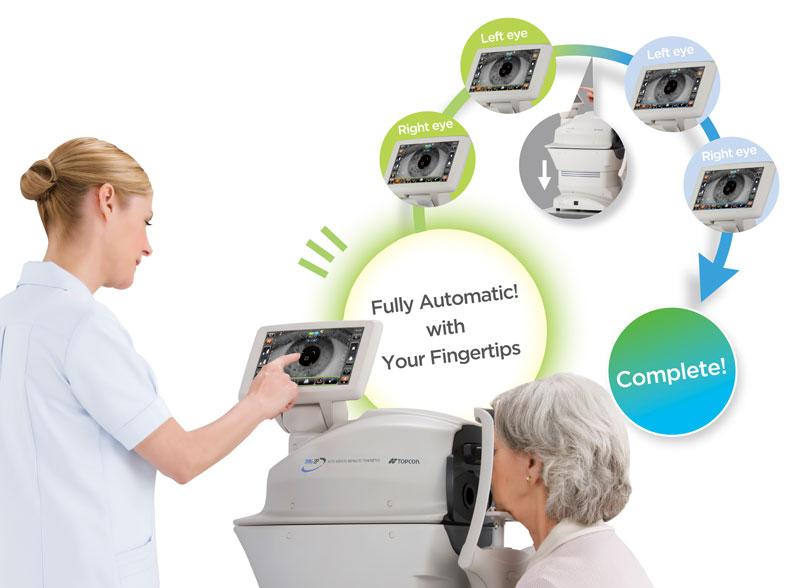

  • Fully automated with rotatable control touch panel
  • Soft air-puff
  • Adjusted IOP based upon pachymetry
  • Ergonomic design
  • Small footprint
REF MEASUREMENT:
Measuring Range Spherical refractive power : -30D to +25D (0.12D/0.25D steps)*
Cylindrical refractive power: 0D to ±12D (0.12D/0.25D steps)*
Direction of astigmatic axis:0° to 180° (1°/5° steps)
Minimum Measurable Pupil Diameter Φ2.0mm
PD Measurement Range 20 to 85mm (0.5mm step)
Target Fixation Auto fog system
KRT MEASUREMENT:
Measuring Range Cornea curvature radius: 5.00mm to 13.00mm (0.01mm step)
Corneal refractive power: 67.50D to 25.96D (0.12D / 0.25D steps)
(where, corneal refractive power =1.3375D)
Corneal astigmatic power: 0D to ±12D (0.12D / 0.25D steps)
Direction of corneal astigmatic axis: 0° to 180° (1°/5° steps)
OCULAR PRESSURE MEASUREMENT:
Measuring Range 1 to 60mmHg (1mmHg step)
CORNEA THICKNESS MEASUREMENT:
Measuring Range 0.400mm to 0.750mm (0.001mm step)

*-30D ≦ spherical refractive power + cylindrical refractive power or spherical refractive power  + cylindrical refractive power ≦ +25D
