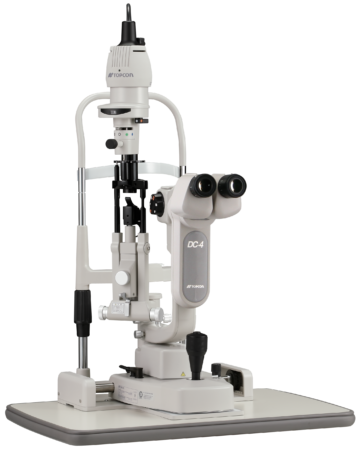

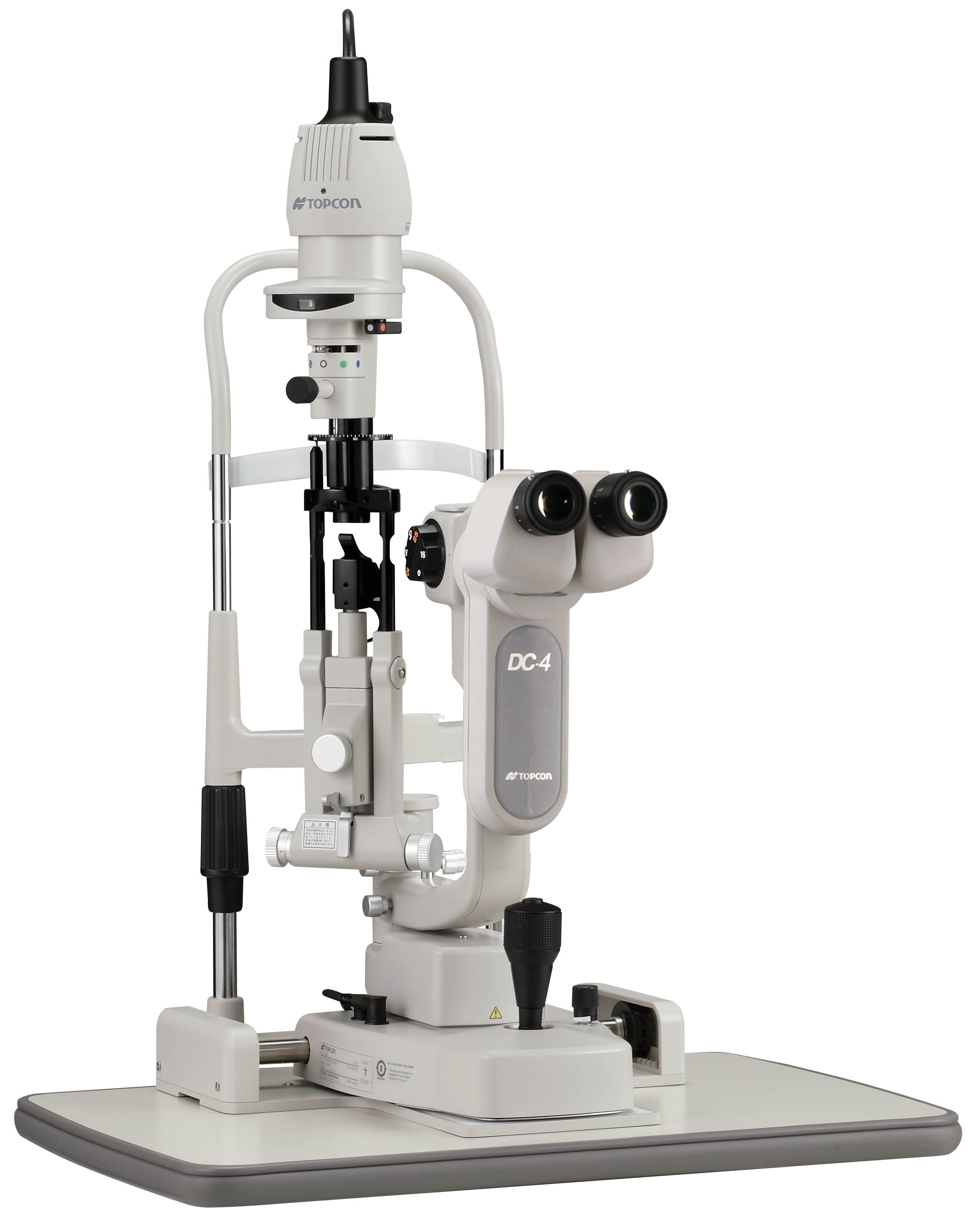

Digital Slit Lamp

The SL-D701 is a digital slit lamp that can be used with conventional halogen illumination or with LED illumination. LED illumination ensures consistent color temperature during light intensity adjustment and easier visualization of details in the anterior chamber and vitreous such as flare and inflammation.

The SL-D701, digital slit lamp, incorporates four filters for enhanced examination:
– Cobalt filter
– Red-free filter
– ND filter
– Amber filter

The amber filter improves the contrast and color of retinal observation. The SL-D701 has 12,5 x eyepieces and converging binocular tubes with a parallel magnification body (6x, 10x, 16x, 25x, and 40x) for extremely sharp stereoscopic observation. As standalone, the joystick trigger button of the SL-D701 provides an illumination boost for detailed observation, available for halogen illumination and LED illumination.

SL-D701 Blue Free Filter™
The SL-D701 Blue Free Filter™ exists of a combination of the special exciter filter and barrier filter (factory option). This Blue Free Filter™ system ensures a 1.6 x brighter fluorescein observation than the cobalt filter. Tear flow details and scars can be clearly viewed with less glare or pooling.

Digital applications
The slit lamp corporates a cable management system, if used as a digital slit lamp. The SL-D701 will seamless integrate with:
– DC-4
– 5-megapixel camera
– BG-5, background illumination / meibography system
– Topcon Fundus Viewer FV-1L.

Other options
The SL-D701, digital slit lamp, has options such as a yellow filter diaphragm filter to increase field-of-depth, tonometer mount, parallel binocular tubes, assistant observation tube, and various relay lenses.

BG-5 background illumination

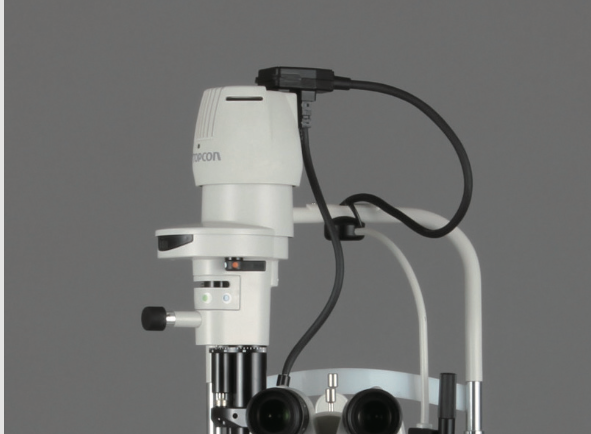

The Topcon BG-5 background illumination consists of a white LED source. The background illumination is required to use for overview images with low magnification and will provide a shadow-free observation with natural colors. For the background illumination, two apertures are available which results in high and low brightness. The BG-5 also provides infra-red illumination that illuminates the Meibomian glands to assess its integrity. The observed images can be displayed on a computer screen and digitally captured with the Topcon digital slit lamp camera DC-4 and archived for teaching and documentation. The BG-5 can be mounted on Topcon slit lamp model SL-D701 exclusively.

Key Features

  • Five magnifications 6x, 10x, 16x, 25x, and 40x for daily specialist use
  • Halogen and LED illumination source available
  • Four filters for enhanced examination
  • Blue Free Filter™ system for 1.6x brighter fluorescein observation (Fluo model)
  • Optimal clarity, color resolution, and depth-of-field
  • Background illumination (BG-5) provides IR illumination which enables observation of Meibomian glands
  • BG-5 provides shadow-free observation
  • DC-4 Digital camera compatible
Type Galilean tyoe
Maginification Selection 5 step by drum rotation
Eyepice 12.5x
Magnification Step 6/10/16/25/40
Magnification Ration (Field of View) 6x (φ35.1mm)
10x (φ22.5mm)
16x (φ14.1mm)
25x (φ8.8mm)
40x (φ5.6mm)
Diopter Adjustment Range -5D to +5D
Slit Width 0 – 14mm, can be altered gradually (14mm=circle)
Slit Length 1 – 14mm, can be altered gradually (14mm=circle)
Aperture Diameter φ14, 10, 5, 2, 1, 0.2mm
Slit Direction Vertical to horizontal can be altered gradually
Inclination: 5 / 10 / 15 / 20 deg
Filter Blue filter, Red-free filter, Amber filter UV Cut (normal use), IR Cut (normal use), ND filter (13% transmission), exciter filter for slit lamp*, barrier filter for slit lamp*
Illumination Lamp Halogen / LED

*A model with standard cobalt blue filter instead of the exciter/barrier filter combination is also available.
