Non-Mydriatic Retinal Camera

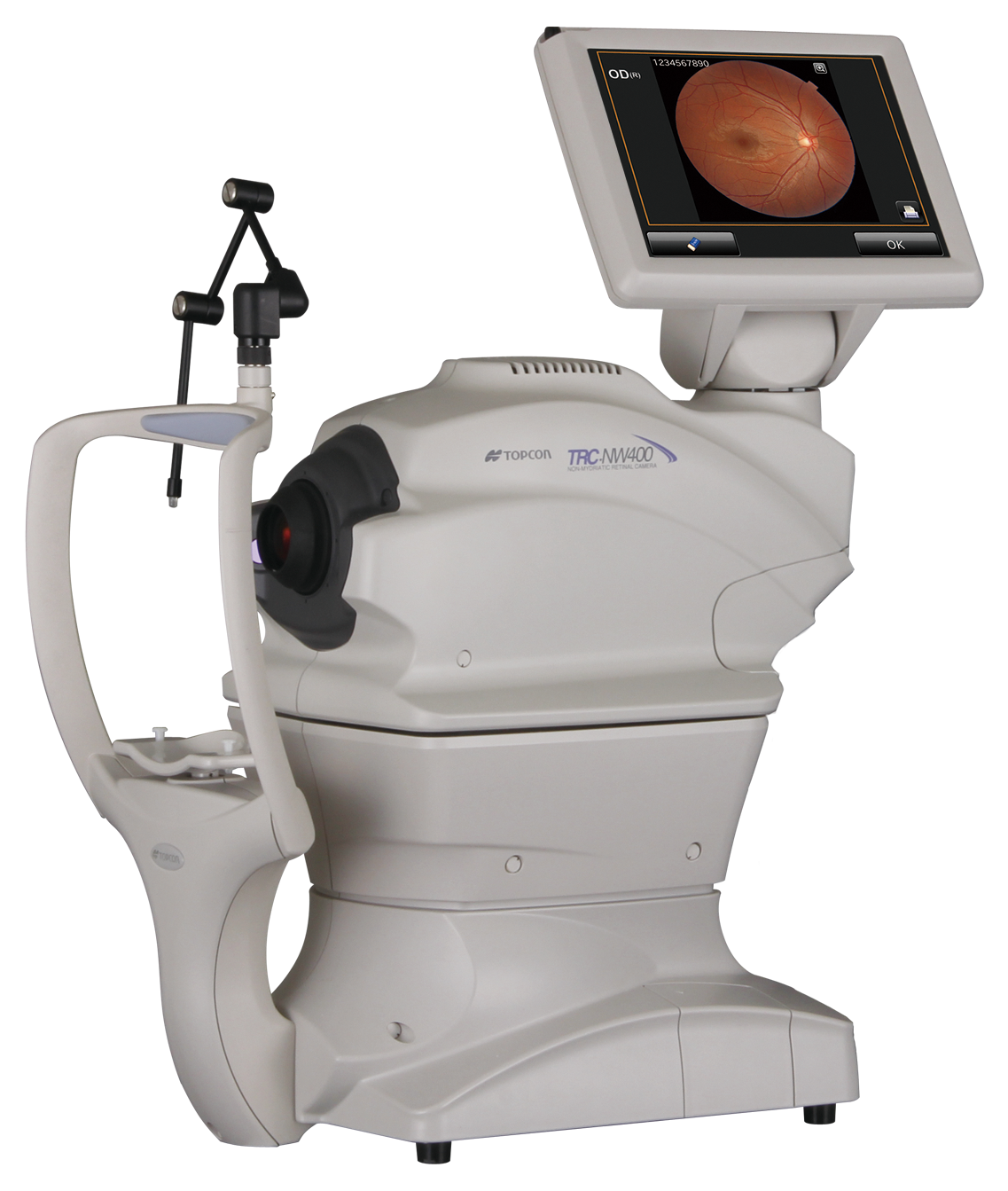

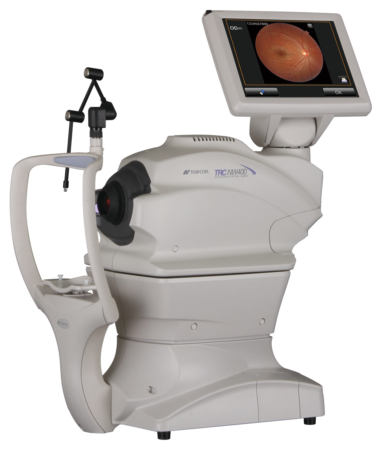

With the new TRC-NW-400 non-mydriatic fundus camera Topcon enters a new area. An area where easy operation, an extremely small footprint, and superb images are key issues.

True color images
The Topcon TRC-NW400 produces true color fundus photos of excellent quality. Details are very clear and sharp.

The TRC-NW400 has the traditional 3 fixations for nasal, central, and temporal images. Besides that, you can photograph the complete periphery due to nine fixation targets for peripheral imaging. With TRC-NW400 you perform a quick screening or do a more elaborate examination.

Small pupils
You can acquire fundus images for small pupils, as small as 3.3mm. It means you can photograph nearly all customers. Due to the high sensitivity and low flash intensity you can produce excellent images with low flash and reduce patient’s stress.

Stereo Photography
In Stereo photography mode, the alignment for a stereo pair is performed automatically. Following the prompts, on-screen a stereo pair for stereo viewing can be quickly and easily acquired.

Space-saving design
The Topcon TRC-NW400 has a very small footprint which minimizes the use of valuable space in a practice. A tiltable screen enables the eye care practitioner to use the fundus camera from several sides. Due to the flexible set up, there is more interaction with the customer and it saves valuable space. The Topcon TRC-NW400 can comfortably be operated when located against a wall or in a corner.

With just one finger touch the operator can take images of both eyes. The fully automated Topcon TRC-NW400 assures fully automated alignment, autofocus, and auto shoot.

Direct DICOM
The Topcon TRC-NW400 is DICOM compliant, making it easy to integrate within PACS and EMR programs.

Key Features

  • True color Fundus Images
  • Easy to navigate
  • Fully automated: auto alignment, autofocus, auto shoot
  • Compact & space-saving design
Angle of coverage 45°/30° or equivalent (digital zoom)
Working distance 34.8mm (in fundus photography)
Pupil diameter for photography 45°, ø4.0mm or more
Small pupil diameter: ø3.3mm or more
Fixation target Internal fixation target:
  – DOT matrix type organic EL
  – The display position can be changed and adjusted
  – The displaying method can be changed
Peripheral fixation target:
  – This is displayed according to the internal fixation
  – target displayed position
External fixation target
Without the diopter compensating lens* -13D to +12D
When the concave compensation lens is used -12D to -33D
When the convex compensation lens is used +11D to +40D

*Area where the split lines are used
