CV-5000 PRO
Computerized Vision Tester

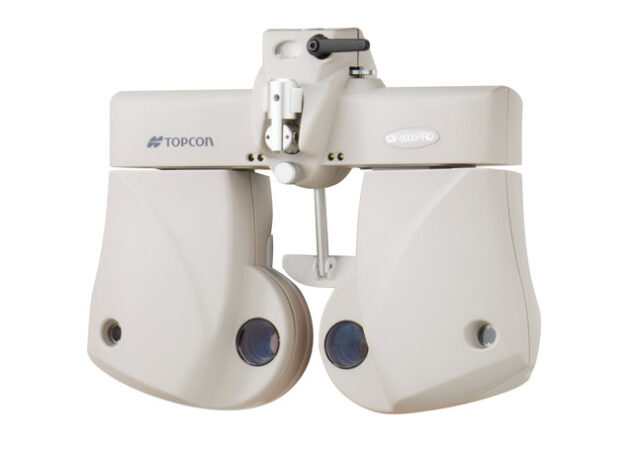

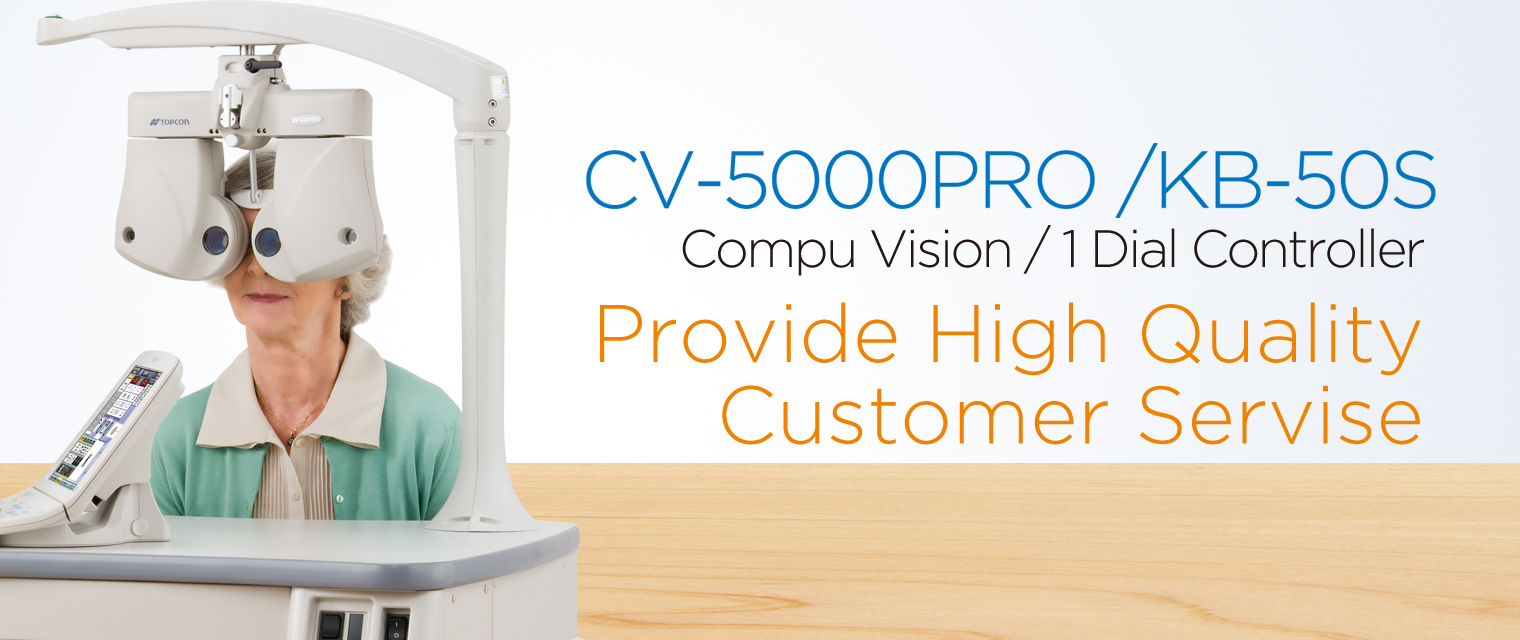

The CV-5000PRO is a high standard automated phoropter that offers all the latest features in automated refraction. It features a high-speed lens chamber, small optical head and can be operated through several controllers. Compact and contemporary design enhances the professional image of the practitioner. To perform near tests, near chart illumination is incorporated into the CV-5000PRO.
One dial operation with KB-50S

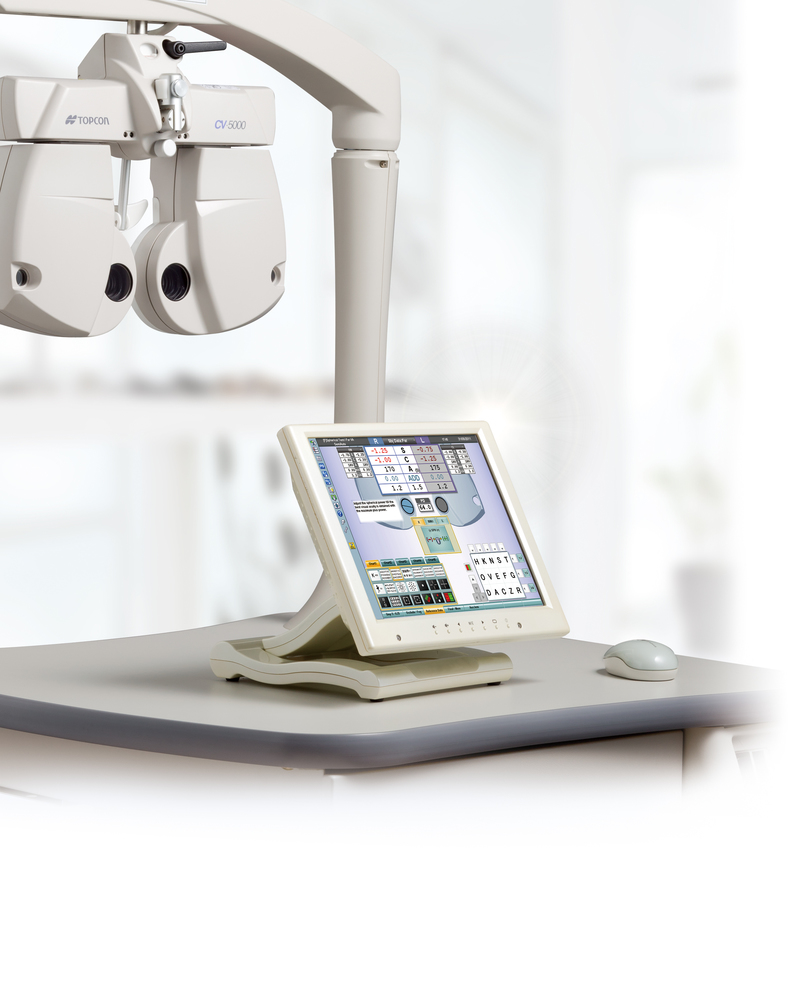

Through the use of the KB-50S control panel, the operator can control all functions of the CV-5000PRO automatic phoropter head. The KB-50S is equipped with a large color LCD touch screen display, providing the best overview of refraction results in the market. Personal settings like screen layout and modus operandi can be defined. The sales support function helps you to visualize your lens advice with animations.
Optional wireless tablet operation
A tablet can be used as a versatile controller for the CV-5000 PRO. The wireless operation offers a more flexible workspace. The iPad or another tablet PC can be used for other non-Topcon applications as well.
Key Features
- Compact design keeping interaction with the patient
- Fast lens rotation
- Lenses with high anti-reflex coating
- Near chart LED illumination
- One dial operation with KB-50S
- Fully programmable display layout
- Programmable refraction course sequences
- Optional wireless tablet operation
- Sales support functions
- User-friendly interface
| SPHERICAL POWER: | |
| Measuring range | (+27.00D to -27.00D) |
| Measuring step | 0.25D/3.00D |
| CYLINDER POWER: | |
| Measuring range | (+8.00D to -8.00D) |
| Measuring step | 0.25D/1.00D |
| CYLINDER AXIS: | |
| Measuring range | 0 to 180° |
| Measuring step | 1°/5°/15° |
| PRISM: | |
| Measuring range | 0 to 20∆ (all direction) |
| Measuring step | 0.1∆/0.2∆/0.5∆/1.0∆ |
| PUPILLARY DISTANCE: | |
| Adjustment range | 48 to 80mm |
| Adjustment step | 0.5mm/1.0mm |
| CROSS CYLINDER: | |
| Jackson Cross cylinder | ±0.25D/±0.50D |
| Auto Cross cylinder | ±0.25D |
| TEST LENS: | |
| Red-Green filter, Polarizing filter (45°/135°), Prism (6∆/10∆), Red Maddox (horizontal/vertical), Lens for retinoscopy (+1.5D/+2.0D), Cross cylinder for measuring presbyopia (±0.50D), Occluding plate, Pinhole, and Crosshairs glass. | |
| REFERENCE EYEGLASS WEARING DISTANCE: | |
| 12mm, 13.75mm, 16mm, 18mm, 20mm | |
| CONVERGENCE: | |
|
Near-point distance 40/67 cm (Minimum papillary distance at near-point 40 cm convergence: 53 mm)
|
|
| FOREHEAD REST ADJUSTMENT RANGE: | |
| 15mm | |
Not Available
Product Demo
Compu Vision CV-5000 Product
OPTIONAL ACCESORIES

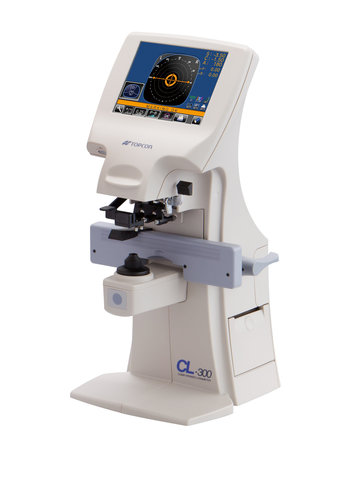

Topcon CL-300 Computerized Lensmeter

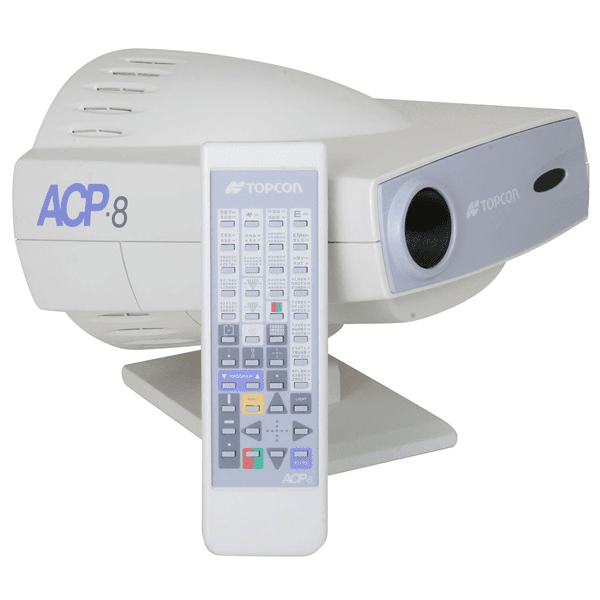

Topcon ACP-8 Auto Chart Projector
Topcon RM-800 Auto Refractometer
Topcon KR-800 Auto Kerato-Refractometer

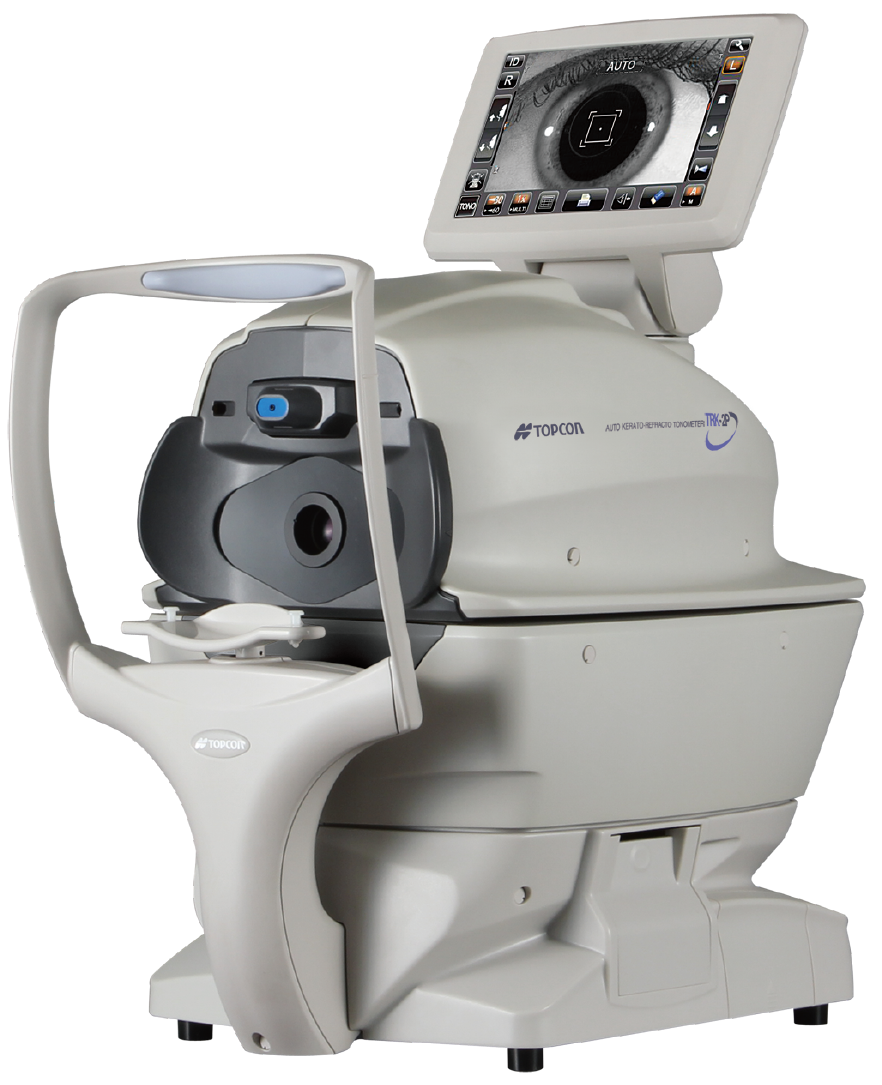

Topcon TRK-2P Auto Kerato-Refracto Tonometer

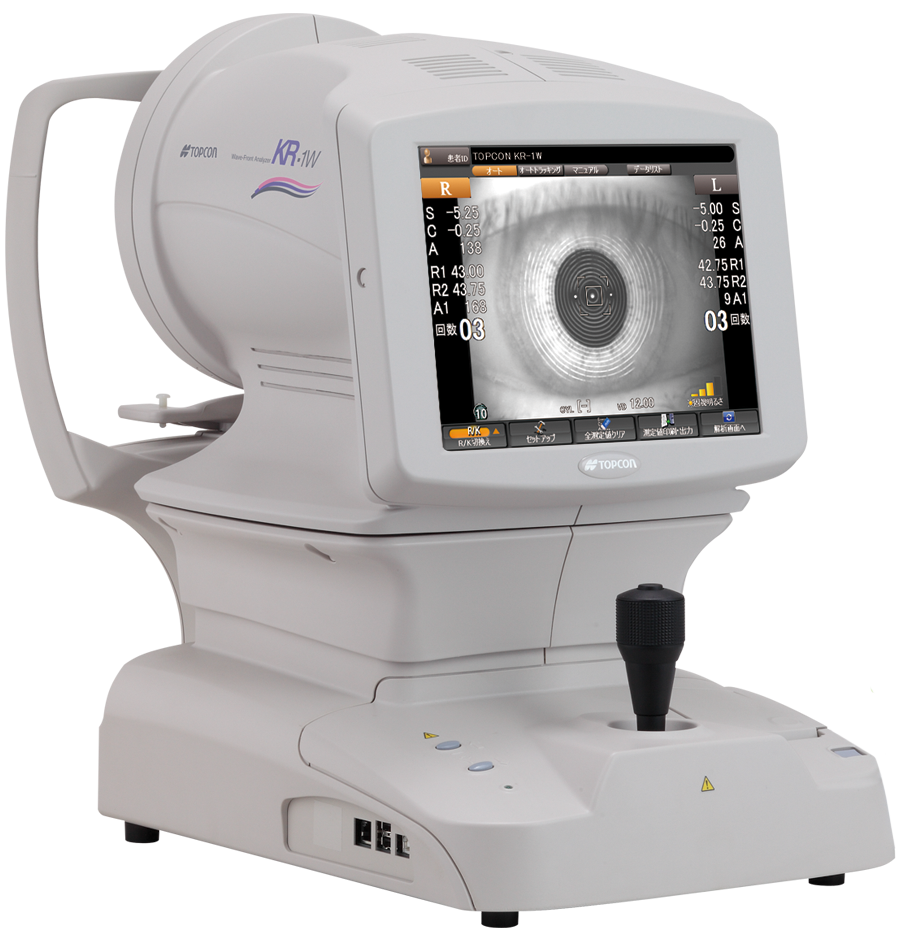

Topcon KR-1W Wavefront Analyzer
