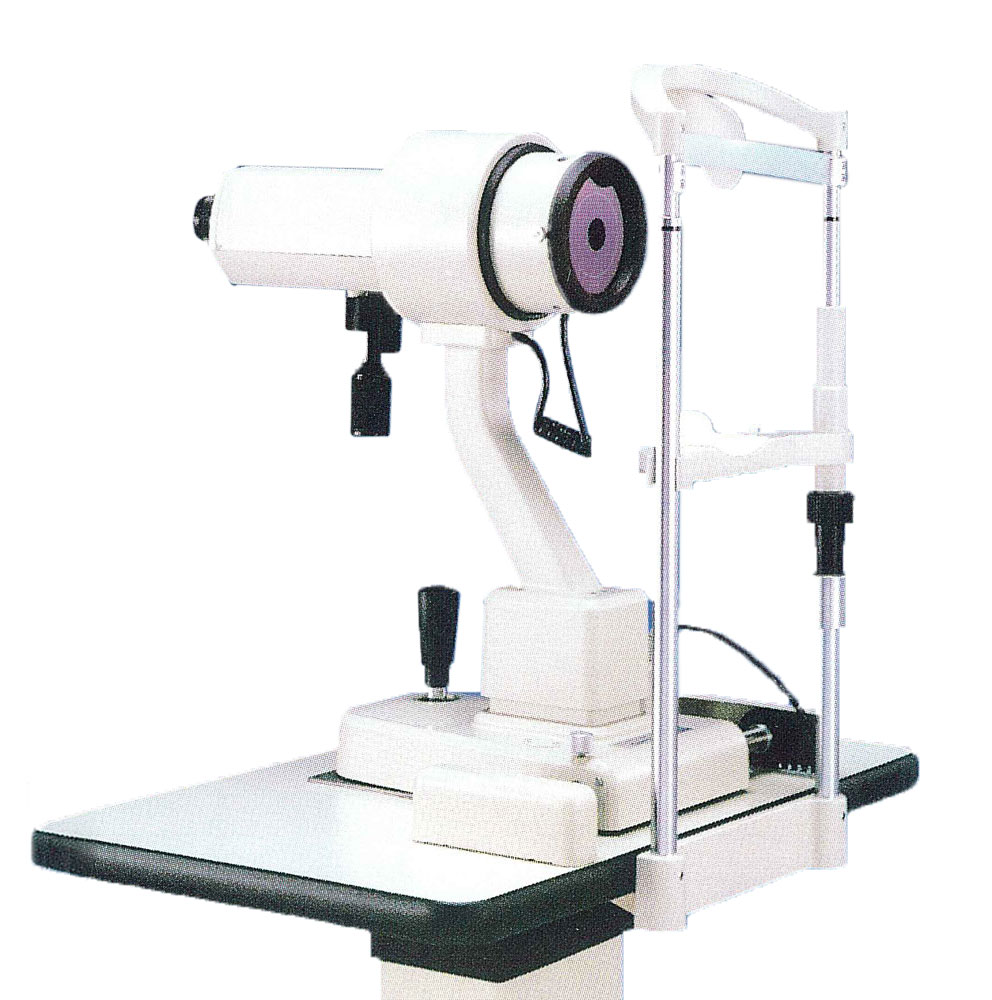

OM-4

Ophthalmometer

The Topcon OM-4 Ophthalmometer is a compactly designed and easy-to-use instrument providing precise objective measurements of the corneal radius of curvature plus accurate measurements of the radius of curvature of contact lenses.

Key Features

  • Precise measurement of the corneal radius of curvature and the radius of curvature of contact lenses
  • Internal scale reading system with an extended measurement range
  • Simultaneous measuring of principal meridians reduces measuring time
  • Omni-directional joystick
  • Speedy, one-position measurement
Type Sutcliff type
SCALES:
Corneal radius of curvature 5.5 to 12 mm
Minimum reading 0.01 mm
Corneal refractive power 28.00 to 60.00 dptr.
Minimum reading 0.125 dptr.
Axis of corneal astigmatism 0 to 180°
Minimum reading
Diopter adjusting scale 0 to ±5 dptr.

Not Available

Not Available

Not Available
