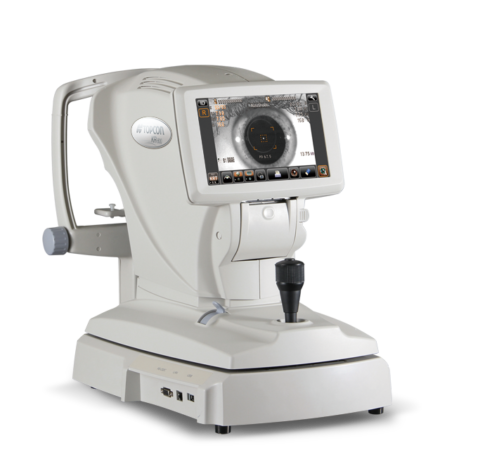

KR-800

Auto Kerato-Refractometer

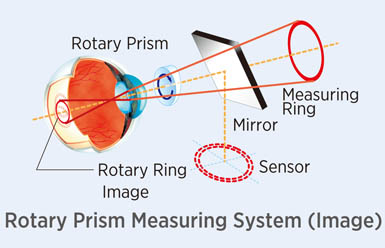

The KR/RM-800 features a bright, new 8.5-inch color touchscreen panel to control the main functions and an improved joystick operation due to a 23% reduction in weight from the previous models. Topcon systems have been renowned for their accuracy due to the proven Rotary Prism Technology. These new units feature this technology as well, so you take confidence, that accurate and stable measurement will be the norm.

8.5-inch LCD touchscreen panel
The new KR-800/RM-800 is equipped with a wide 8.5-inch color touchscreen panel featuring clear, easy to read icons allowing the operator full control of the unit during the measuring process.

Smoother operation
Topcon’s ability to engineer a weight reduction of approximately 23% has contributed to a smoother operation of the unit when using the X-Y control lever. This all contributes to a more fluid measuring process and a more accurate end result.

One-touch lock
Both new instruments are fitted with a quick and easy to use lock.

Easy load printer
The printer on the new units saves you time by eliminating the need to load new printer rolls. You simply drop the new roll in and print.

Key Features

  • Topcon’s Rotary Prism Technology for unparalleled accuracy
  • Simple to use
  • Compact and modern design
  • 8.5-inch LCD touchscreen panel
  • LAN connectivity
REFRACTIVE POWER MEASUREMENT:
Spherical refractive power -25D to +22D (0.12D/0.25D steps)*
Cylindrical refractive power 0D to ±10D (0.12D/0.25D steps)*
Astigmatic axial angle 0° to 180° (in 1″ or 5″steps)
Minimum measurable pupil diameter ø2 mm
CORNEAL CURVATURE MEASUREMENT:
Corneal Curvature Radius 5.00 to 10.00mm (0.01mm step)
Corneal Refractive Power 67.50D to 33.75D (0.12D/0.25D steps) (where corneal refractive power = 1.3375)
Corneal Astigmatic Refractive Power 0D to ±10D (0.12D/0.25D steps)
Corneal Astigmatic Axis Angle 0° to 180° (1° or 5°steps)
PD Measurement Range 20mm to 85mm (0.5mm step)

*-25D ≦ spherical refractive power + cylindrical refractive power or spherical refractive power + cylindrical refractive power ≦+22D
