Digital Camera

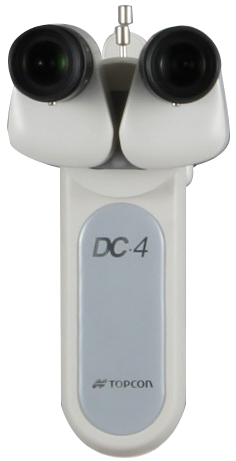

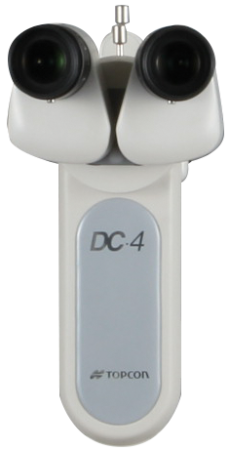

The DC-4 is a digital camera for capturing still images or videos for detail analysis and diagnosis. The DC-4 has a 5 megapixel CMOS chipset for a crisp capture similar to the binocular observation quality. The DC-4 is very user friendly, images and videos are made by pushing the joystick button of the slit lamp. Incorporated is an infra-red cut filter for sensitivity of infra-red illumination of BG-5, capturing and making Meibomian glands clearly visible.

Smart capture function
The DC-4, digital camera, has a smart capture function. It is possible to obtain rapidly a series of five images of which the best picture can be selected. The smart capture function minimizes failed images or blurry pictures, especially with children and in conditions of excessive blinking.

Auto exposure function
By adjusting the shutter speed and sensor gain, the brightness of the image will be automatically compensated. As a result the binocular observation and the final picture will have the same colour balance.

The DC-4 also comes with the basic IMAGEnet i-base software.

Key Features

  • Infra-red cut filter to capture meibomian glands
  • 5 megapixel CMOS chipset
  • Smart capture function
  • Auto exposure function
  • Easy capture with slit lamp joystick button
  • IMAGEnet i-base software included
System Beam flux division by beam splitter
Beam splitter division ratio Operator side: 50%; Camera side: 50%
Focus distance 35.7mm
Sensor type 1/2.5 type CMOS; Effective pixel number: 5.04 M pixels
Image resolution 2592 x 1944
Pixel size 2.2 x 2.2 um
Movie resolution 1294 x 970
