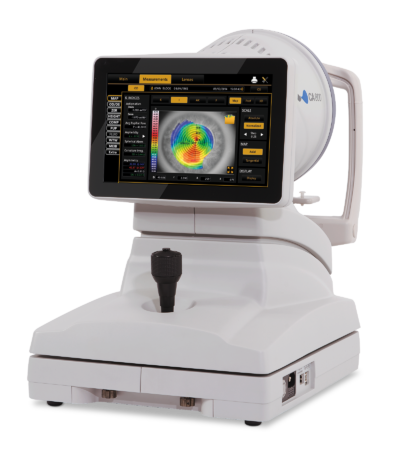

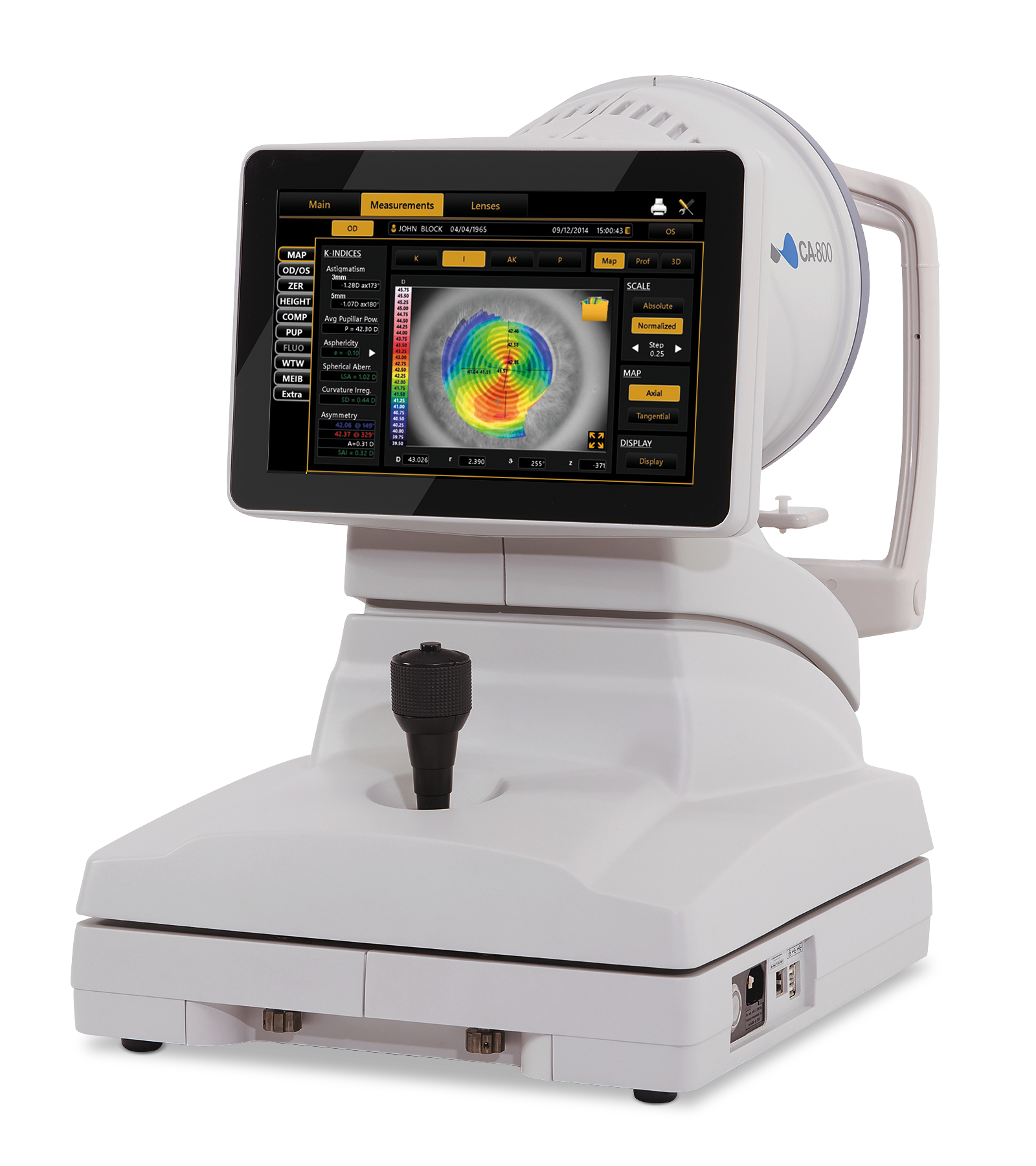

Corneal Analyzer

The CA-800 corneal analyzer offers a complete solution for the full diagnostic evaluation of the anterior corneal surface, as well as the Meibomian Glands observation and Tear Film analysis. The CA-800 is extremely easy to handle and use. Visual signals support fast and easy alignment and focusing on the patient’s eye for quick acquisitions.

Dry Eye Analysis tools
The CA-800 Corneal Analyzer comes with an extensive collection of tools to analyze dry eyes.

  • TBT (non-invasive tear break-up time – NIBUT)
  • Blink analysis
  • Meibomian Gland analysis (area of loss)
  • Tear Meniscus height measurement
  • Fluo imaging (Conjunctival and corneal staining)

CA-800 Curvature mapping
The CA-800 Corneal analyzer is a comprehensive topographer for evaluation of the anterior corneal surface. In addition to curvature mapping which can also be displayed in 3D, it provides a complete analysis of the cornea inclusive keratoconus probability index and height map of the corneal surface. It also provides fluorescein images and real time fluorescein video’s for contactlens fitting.

Pupillometry, Fluorescein & Meibography
The CA-800 is a placido-based topographer with 24 rings that measure up to 6.144 data points, with axial and instantaneous curvature evaluation. Moreover, it is equiped with 4 infrared LEDs and 2 white LEDs for Dynamic and static pupillometry and 8 blue LEDs for fluorescein images and videos to carry out full contact lens analysis. With the 4 infrared LED’s Meibomian Glands can easily be analyzed for any possible defects.

Contact lens fitting
The CA-800 is the perfect support for contact lens fitting. A simulation software is provided on-board including a complete contact lens database for all the main manufacturers (upgradable and customizable by the user).  The on-board fluorescein acquisition system allows full control of the contact lens position on the eye. Thanks to the on-board pupillometer the user can check the pupil position and diameter (from photopic to scotopic condition) in relation to the position of the optical zone in Ortho-k or refractive surgery treatments.

Zernike & Toric IOL calculation
The CA-800 can be used to perform Zernike analysis to evaluate any aberrations and deficiencies of the cornea. An additional functionality of CA-800 is an on-board application for toric IOL calculation in cataract surgery. The CA-800 presents the curvature mapping of both the right and left eye at the same time on the display for easy comparison, as well as comparison with previous measured results.

CA-800 Ease of use
The CA-800 is extremely easy to handle and use. From image acquisition to analysis, the on-board software is intuitive and user-friendly and the 10.1-inch capacitive touch screen provides quick navigation. Visual guidance supports fast and easy alignment and focusing on the eye; the “best image” selection modus automatically acquires the best-focused image.

Integrated PC
The brand new compact design of the CA-800 includes a fully integrated PC, so that an external PC is not required to manage a patient database for archiving and re-analysis purposes.

Key Features

  • Topography
  • Fluorometry
  • Pupillometry
  • Zernike Analyse
  • Contactlens fitting simulation
  • Toric IOL calculation
  • Meibography; including area of loss analysis
  • White to white
  • Comparison maps
  • Curvature height maps
  • Automated best image selection
  • Keratoconus probability index
  • Ortho-K treatments
  • Refractive surgery treatments
  • Complete corneal analysis
  • Tear film analysis
  • Tear Meniscus Height (TMH) analysis tool
  • Free i-MAP PC review software
Keratoscope Cone 24 rings equally distributed on a 43D sphere
Analyzed Phone Over 100.000
Measured Phone Over 6.200
Corneal Coverage Up to 9.8mm on a sphere of radius 8.00mm (42.2 diopters with N=1.3375)
Diopter Power Change From 1D to 120D
Resolution +/- 0.01D, 1 micron
Accuracy/Precision Axial Radius +/- 0.03mm altimetric data +/- 2µm at 4mm
Capture System Auto-focus with Auto-capture
Output Ports USB, LAN
Monitor LCD 10.1-inch capacitive touch screen
Database Internal
Pupillometry Dynamic, Photopic, Mesopic, Scotopic
Fluorescein Image, Video
Report Corneal map, Comparison map, Contact lens, Heightmap, Zernike analysis, Pupillometry, Toric IOL, Screenshot, Meibomian glands, Tear Film Breakup Time
Working Environment 10°-40°C, Relative humidity 30-75% (no dewing), Atmospheric pressure 700-1060hPa
Connections Wi-Fi Optional, LAN integrated
Printing Option USB printer, Network printer, PDF on-network shared folder, PDF on USB
Operating System Windows 7 Embedded
Hard Disk 320 GB
  • CA-800 Leaflets

    • 10 Reasons to choose CA-800

  • Sample Report

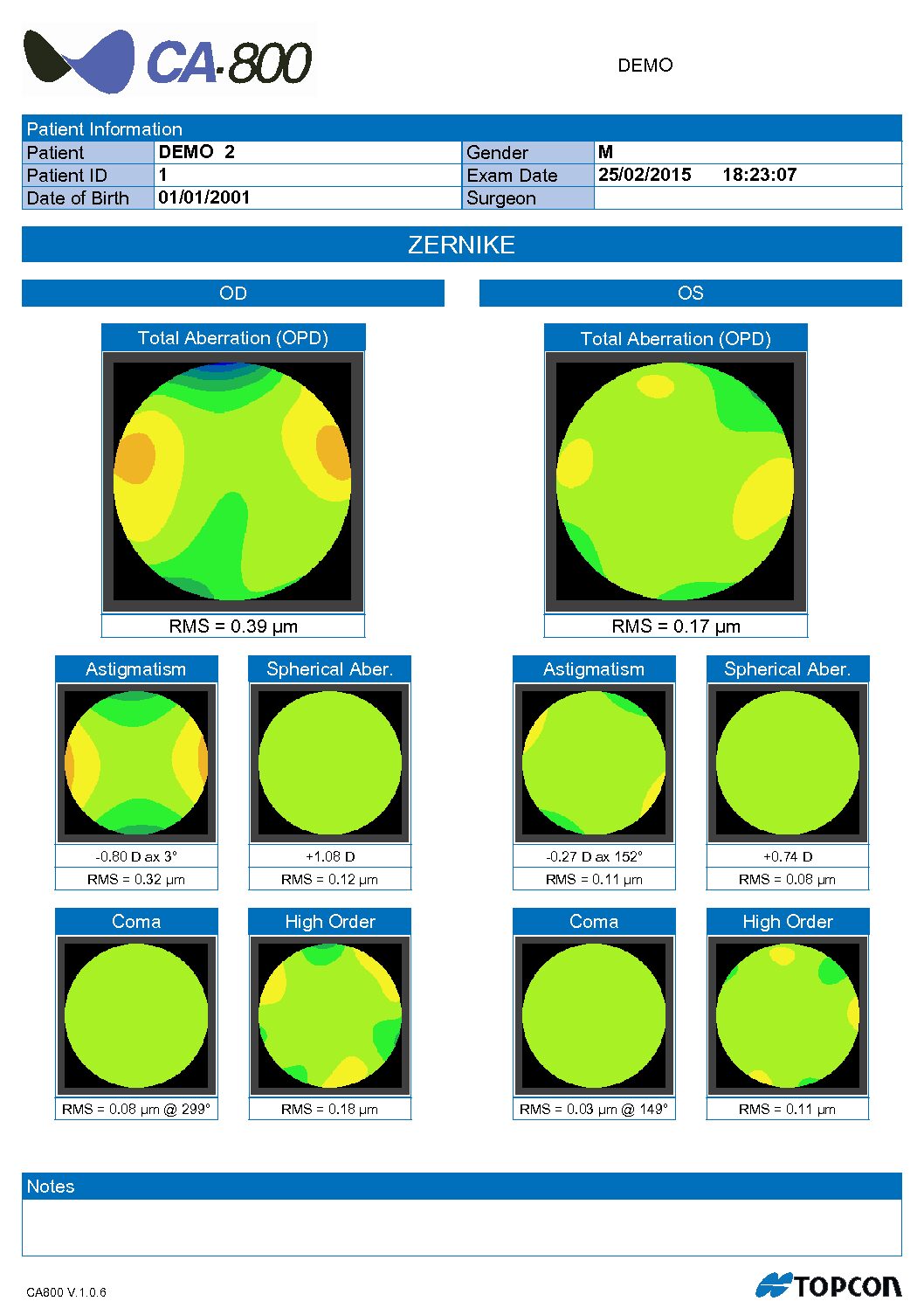

    • Zernike Analysis

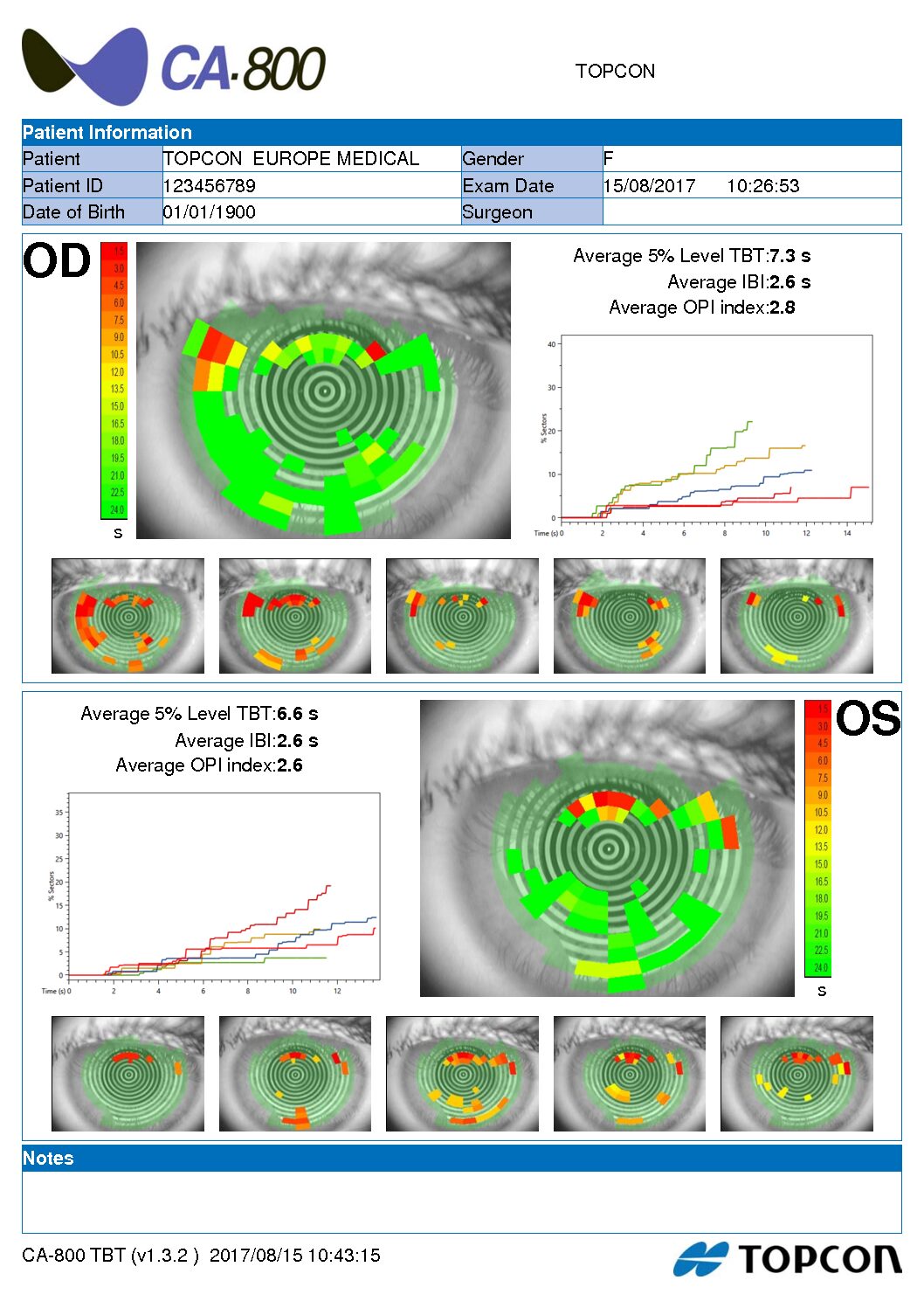

    • Tear Film Break Up Time

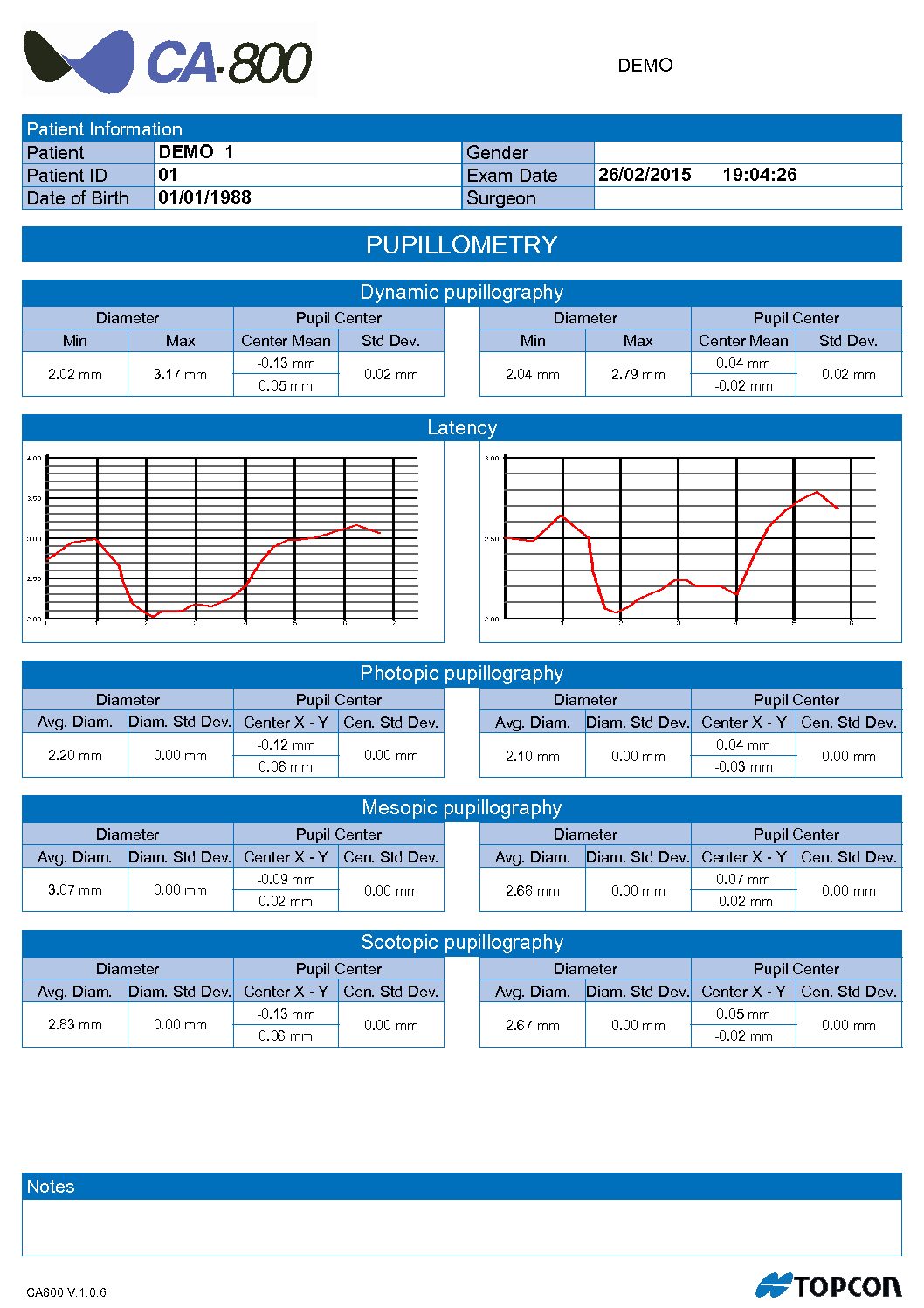

    • Pupillometry

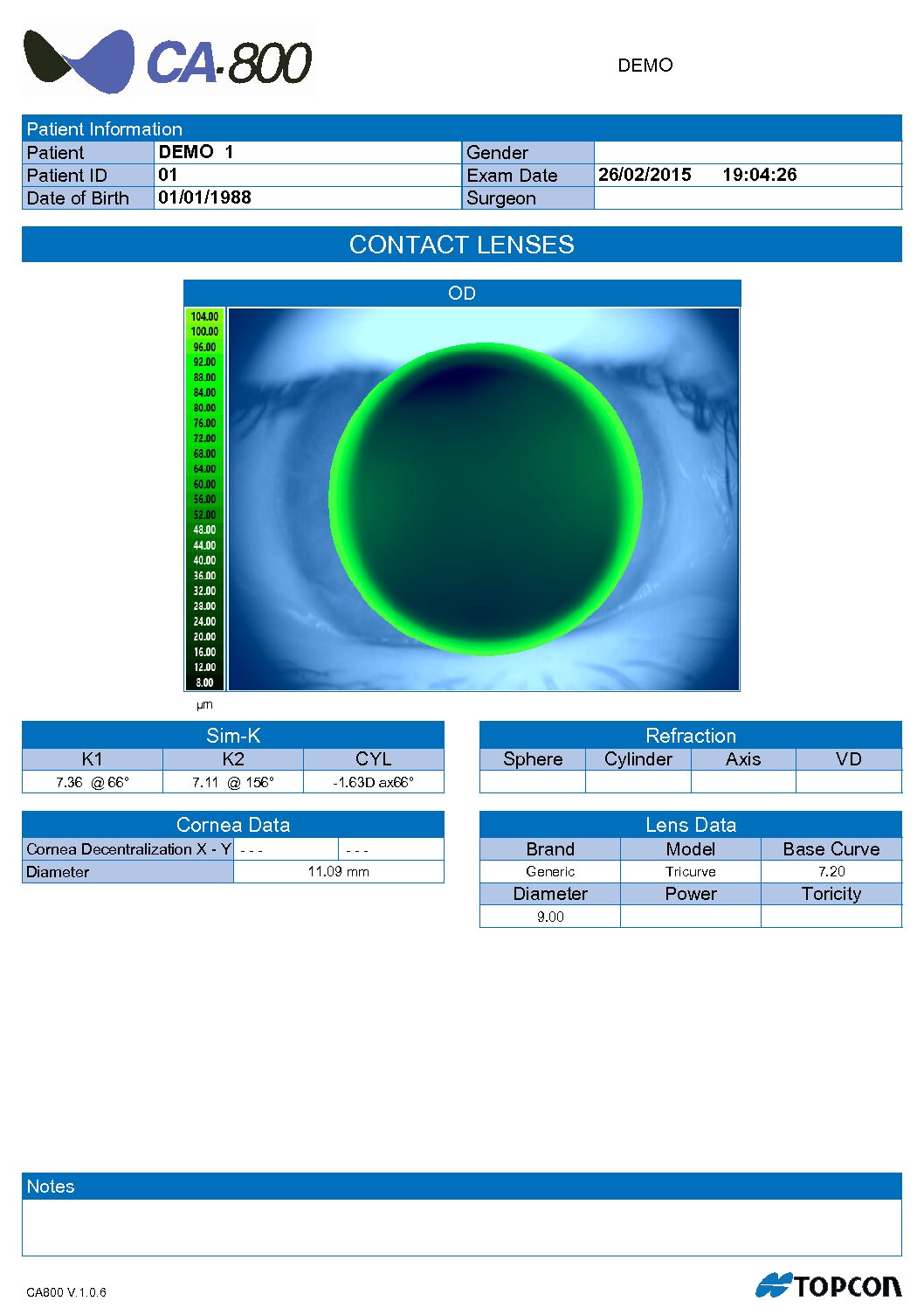

    • Contact Lens Fitting

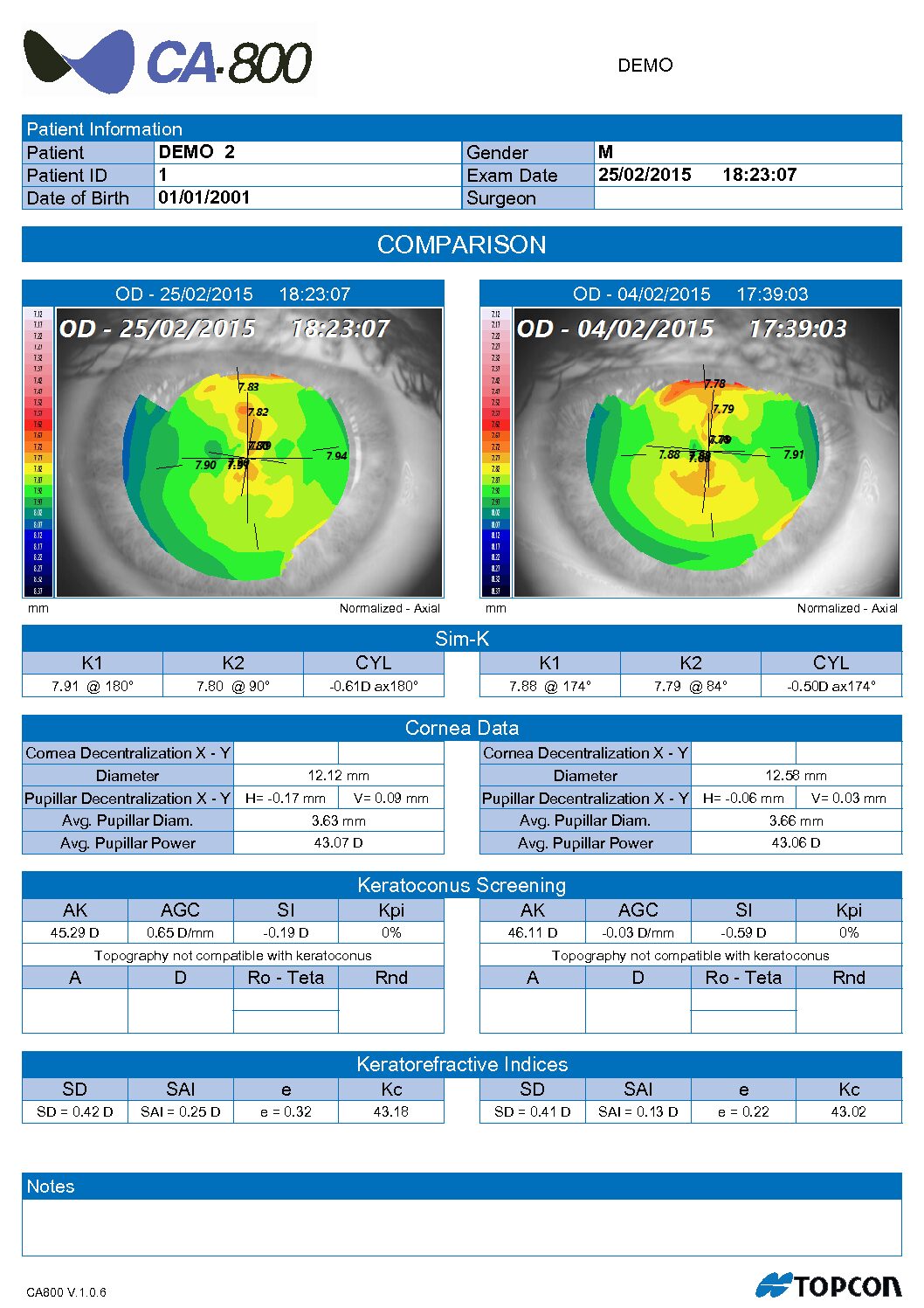

    • Comparison Report
