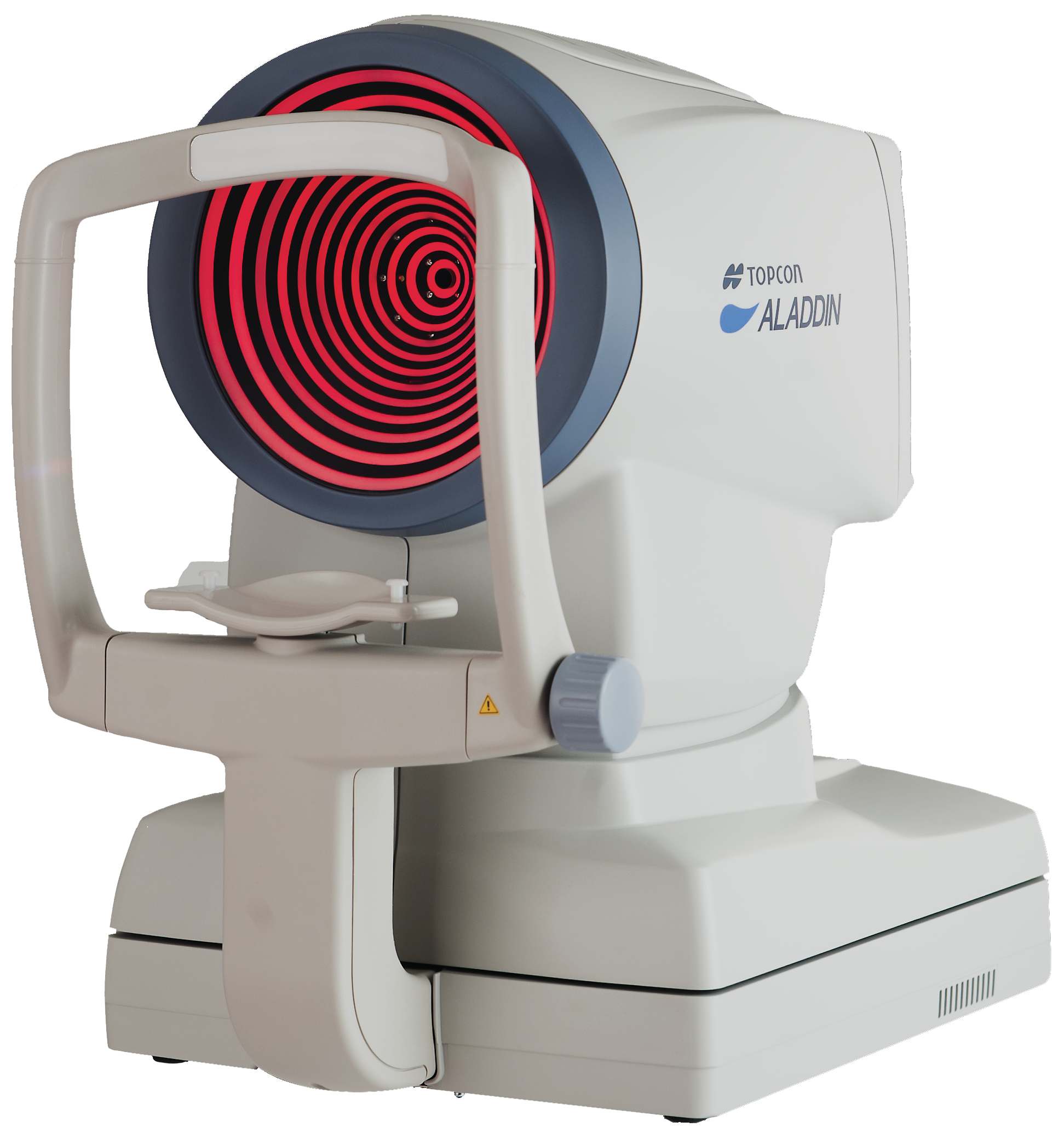

ALADDIN

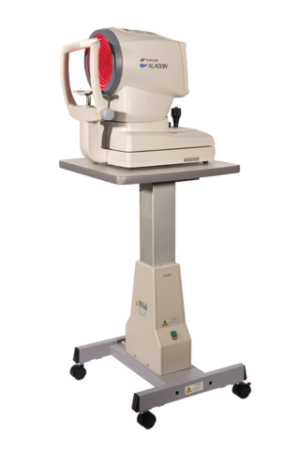

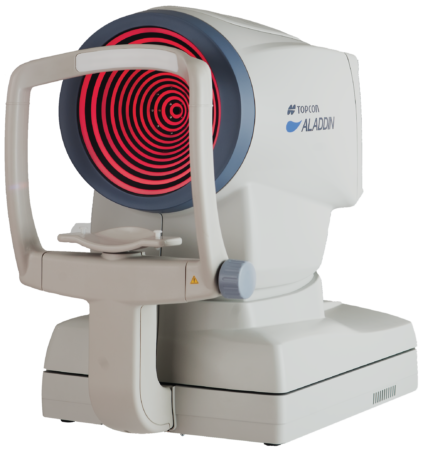

Optical Biometer & Topography System
The Aladdin HW3.0 is a multi-function instrument that combines a series of measurements to assist eye surgeons in the calculation of IOL power. The Aladdin combines Axial Length, Keratometry, Anterior Chamber Depth, Lens Thickness, Central Corneal Thickness, Corneal Topography, Pupillometry, and Corneal wave-front analysis and Whit-to-white in one single instrument, assisting the Eye Surgeon on the selection of conventional and premium intraocular lenses. Included in the Aladdin software is also the RX/AL Trends – Myopia Module. The Aladdin Myopia Module is a measuring and display program that allows the operator to monitor and display trends and progression of eye parameters that are related to the onset and progression of myopia.
Key Features
- Point & shoot acquisition: all necessary measurements are taken in under 5 seconds
- Proven Interferometry technology delivers accurate axial length, lens thickness, and central corneal thickness information
- 9 Measurements in one single instrument
- The operator is only 3 clicks away from printing the IOL report
- Precise IOL power calculation formulae and generic Toric IOL calculator including the Abulafia-Koch astigmatic regression formula
- On-board Barrett IOL Calculation Suite including the Barrett Rx, The Barrett Toric IOL Calculator, the Barrett True K, and the Barrett Universal II formulae

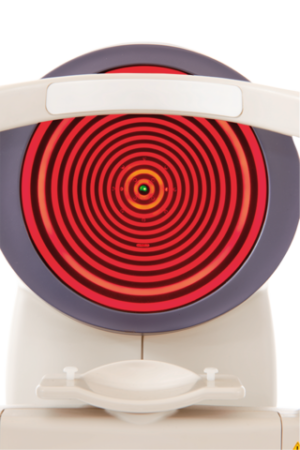

- Built-in full Placido topography system offers all the additional diagnostic capabilities of any stand-alone topographer
| MEASUREMENT RANGE FOR IOL: | |
| Axial Length (Interferometry) | Super luminescent diode 830Nm, 15 mm – 38 mm |
| Corneal Radii | 5,00 mm – 12.00 mm / 28.00D – 67.50D |
| ACD Measurement | Interferometer 1.5mm – 6.5 mm |
| WTW Measurement | 8.0 mm- 14.0 mm |
| Pupillometry | Dynamic, Photopic & Mesopic, Pupil size 0.5 mm – 10 mm |
| Lens Thickness (Interferometry) | 1.5 mm – 6.5 mm (phakic) |
| 0.5 mm – 3.5 mm (pseudo-phakic) | |
| CCT Measurement (Interferometry) | 0.300 mm – 0.800 mm |
| ON-BOARD CALCULATION FORMULA: | |
| IOL Formulas | Haigis, Hofer Q, Holladay 1, SRK®II & SRK®T, Barrett Universal II, Olsen |
| Post Refractive Surgery IOL Formula | Camellin-Calossi & Shammas (no history), Olsen, Barrett True K |
| PLACIDO TOPOGRAPHY SPECIFICATION: | |
| Keratoscopic Cone (Topographic Map) | 24 rings on a 43 dpt sphere, working distance 80 mm |
| Points Analyzed | over 100.000 |
| Points Measured | over 6.000 |
| Cornea Coverage | up to Ø 9.8 mm (on an 8 mm sphere) 42.20D with N=1.3375 |
| Guided Focus System | yes |
| KERATOCONUS SCREENING: | |
| Apical Curvature | yes |
| Apical Gradient of Curvature | yes |
| Symmetry Index | yes |
| Kpi (Keratoconus probability index) | yes |
| SOFTWARE FEATURES: | |
| Toric IOL Calculator | Generic Toric IOL, Oculentis Toric IOL |
| Zernike Analysis | Pupil size 2,5 mm – 7,0 mm |
| Print to | USB printer, Network printer, PDF to shared network folder & PDF to a USB drive |
| REPORTS: | |
| Aladin Reports | yes |
| Measurement Overview | yes |
| Pupillometry | yes |
| IOL | yes |
| Generic Toric IOL | yes |
| Oculentis Toric IOL | yes |
-
Clinical Papers
-

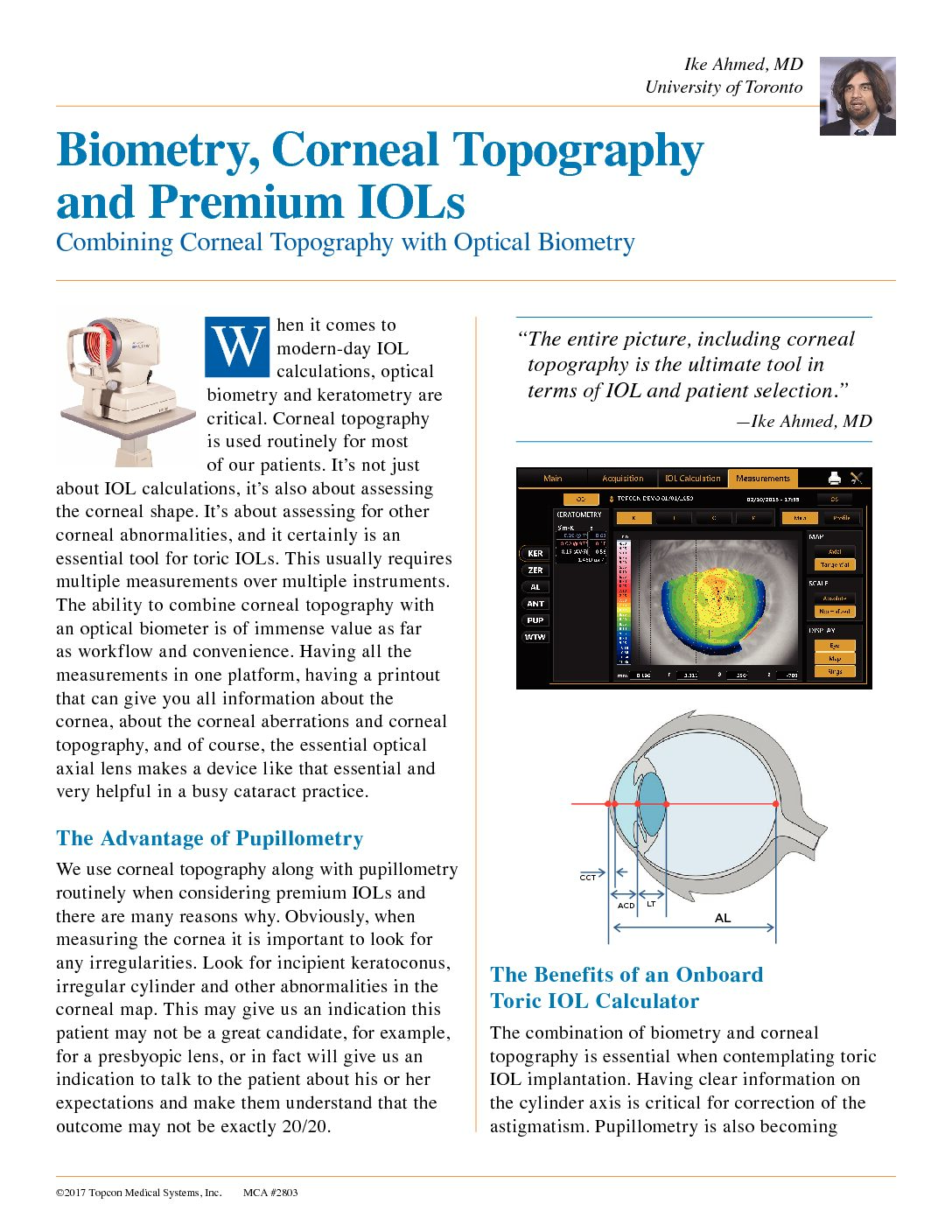

Biometry, Corneal Topography and Premium IOLs (Combining Corneal Topography with Optical Biometry)
-

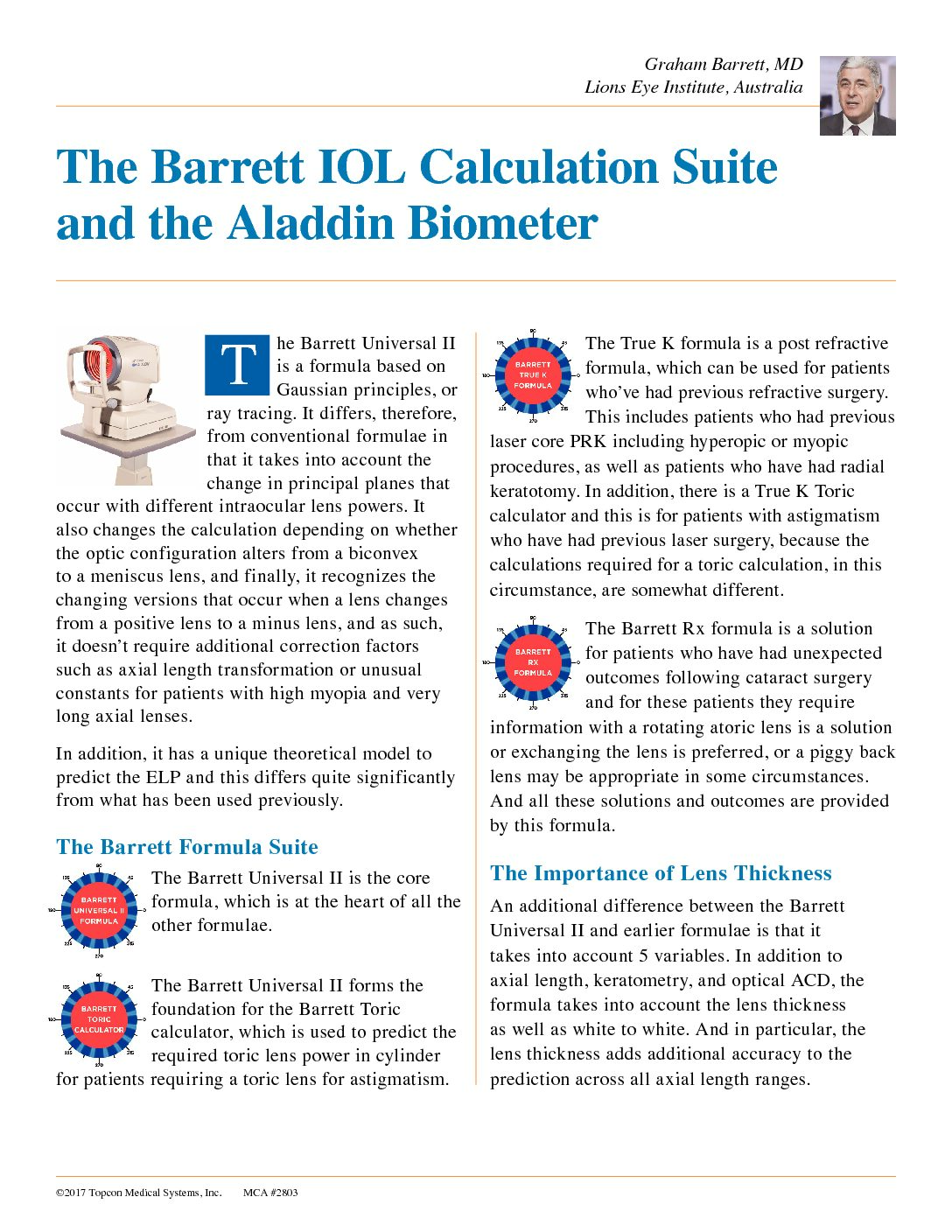

The Barrett IOL Calculation Suite and the Aladdin Biometer
-

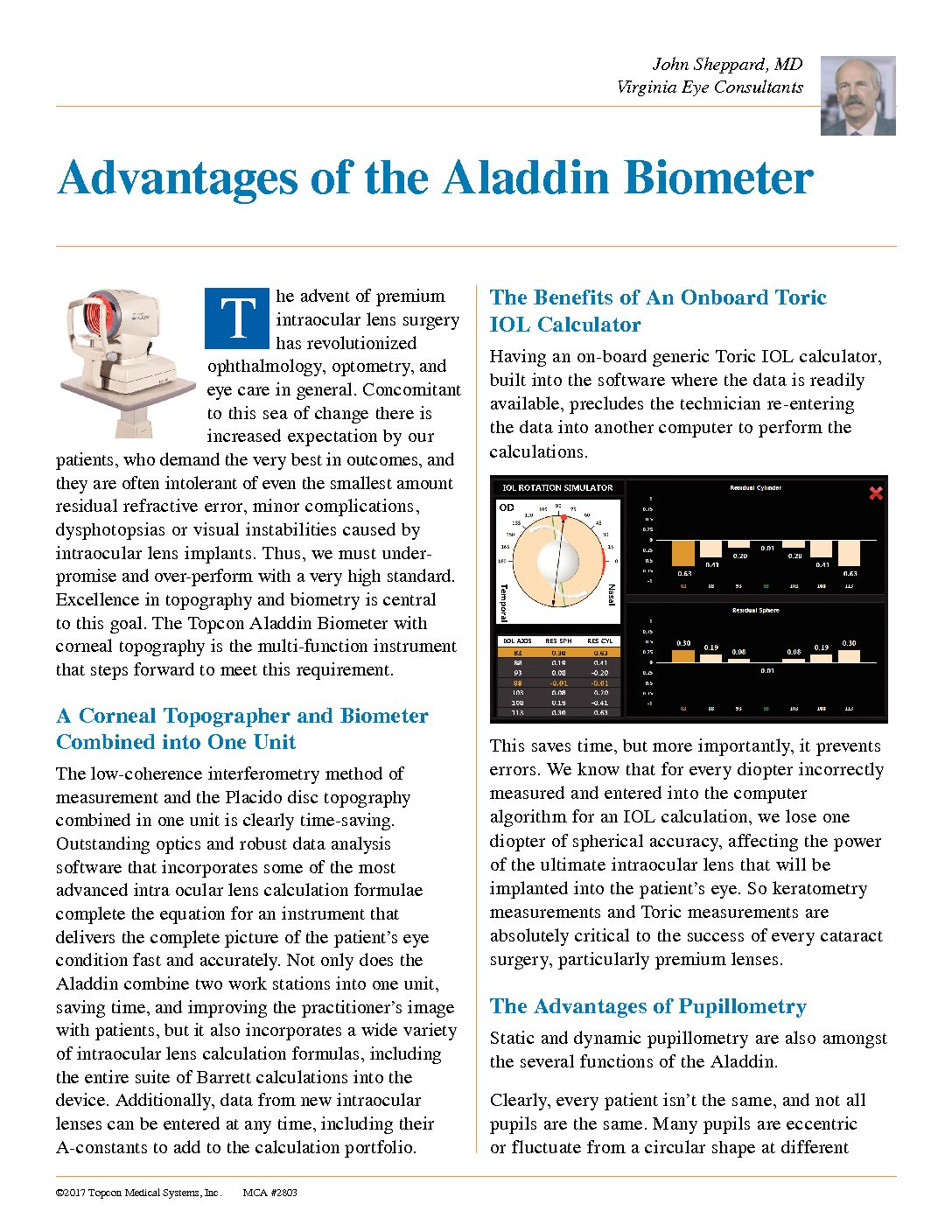

Advantages of the Aladdin Biometer
-

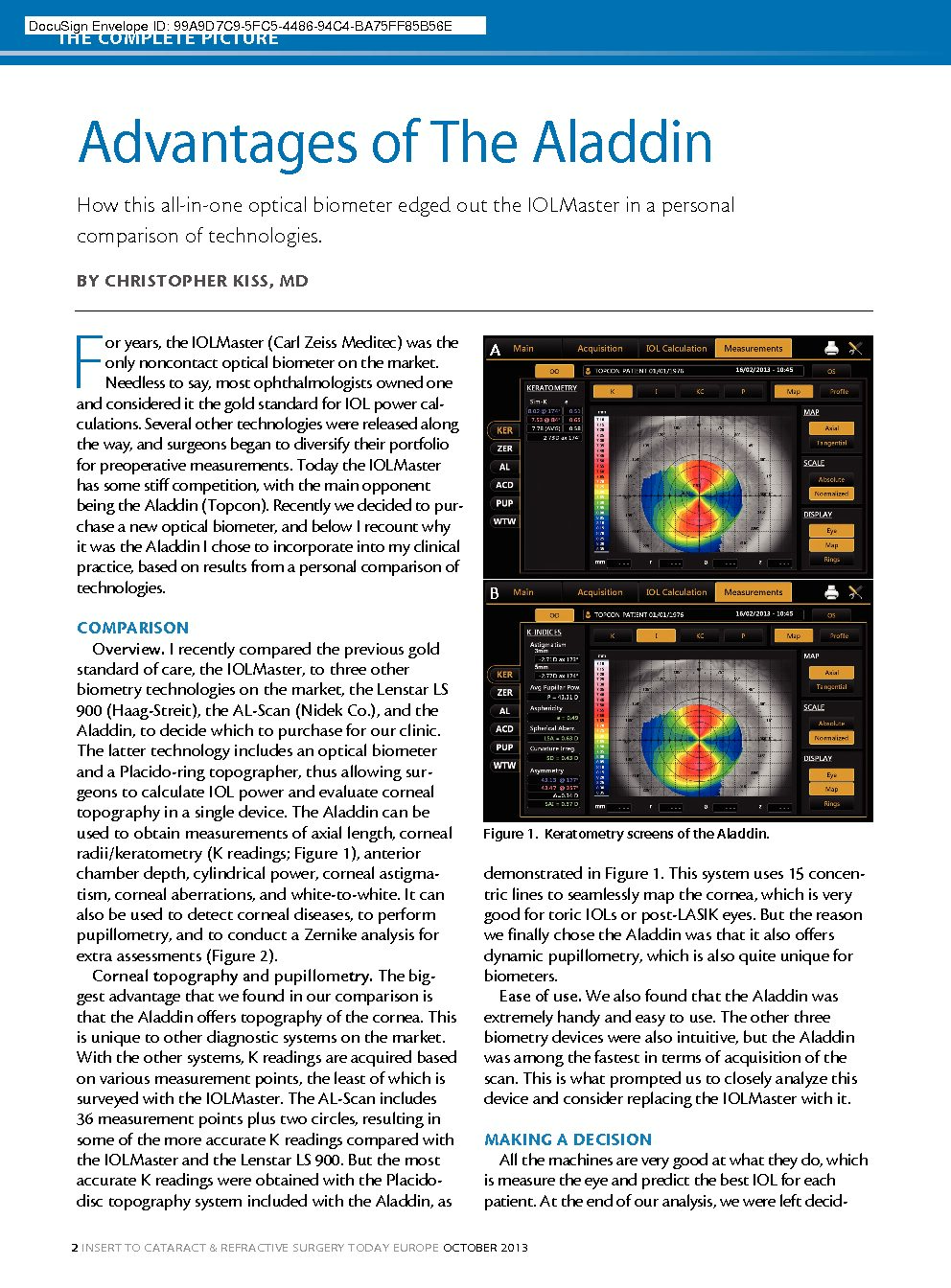

How this all-in-one optical biometer edged out the IOLMaster in a personal comparison of technologies.
-
-
Aladdin Leaflets
-

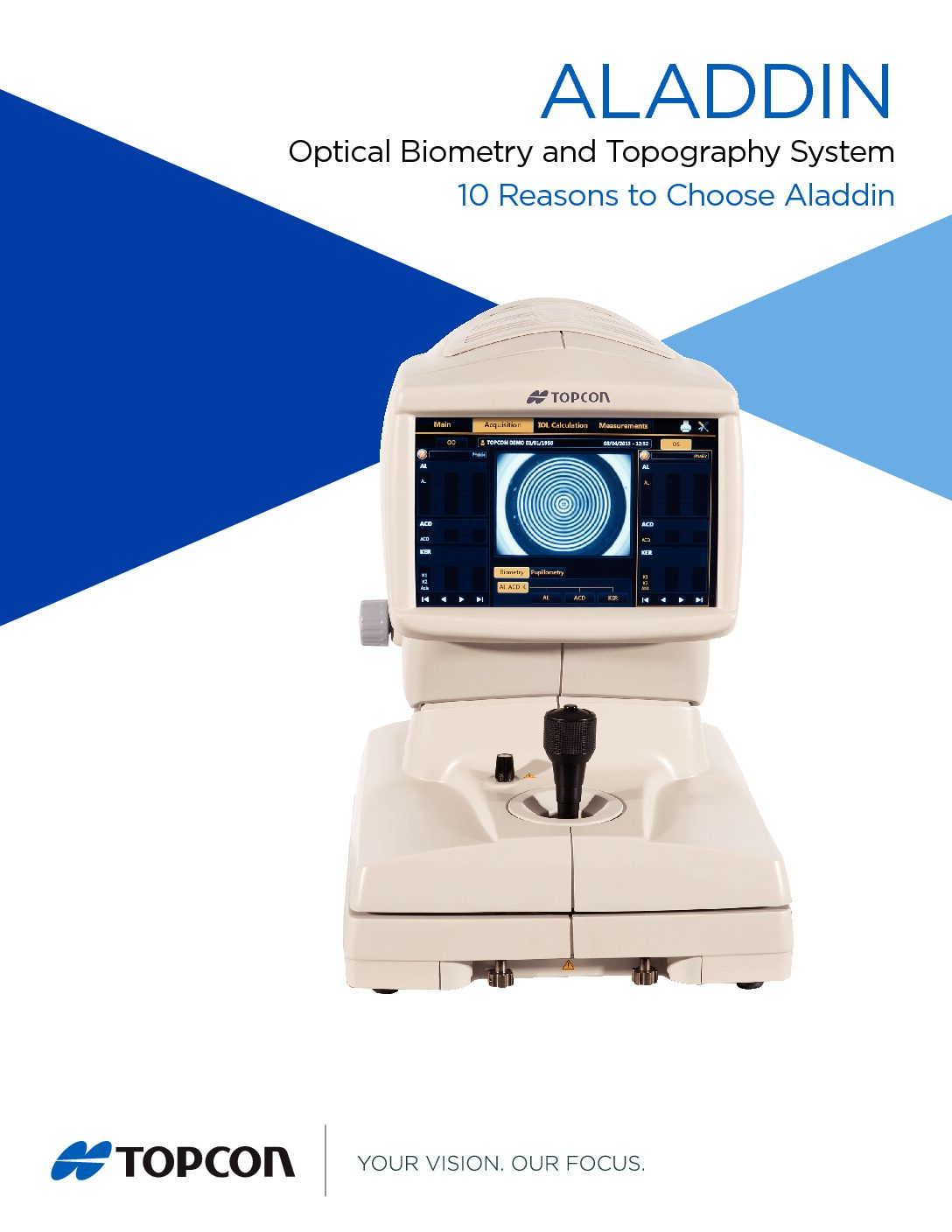

10 Reasons to Choose Aladdin
-
-
Sample report
-

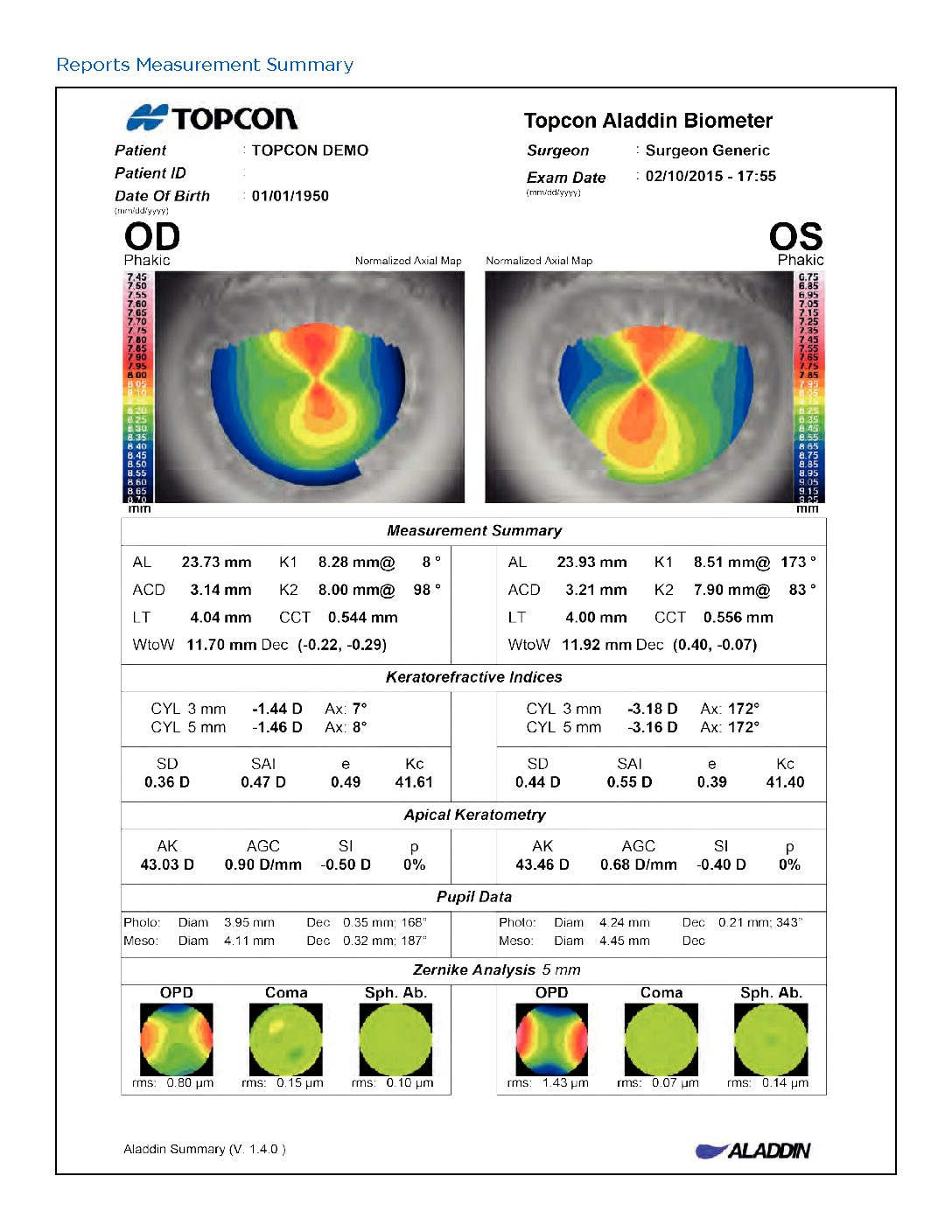

Reports Measurement Summary
-

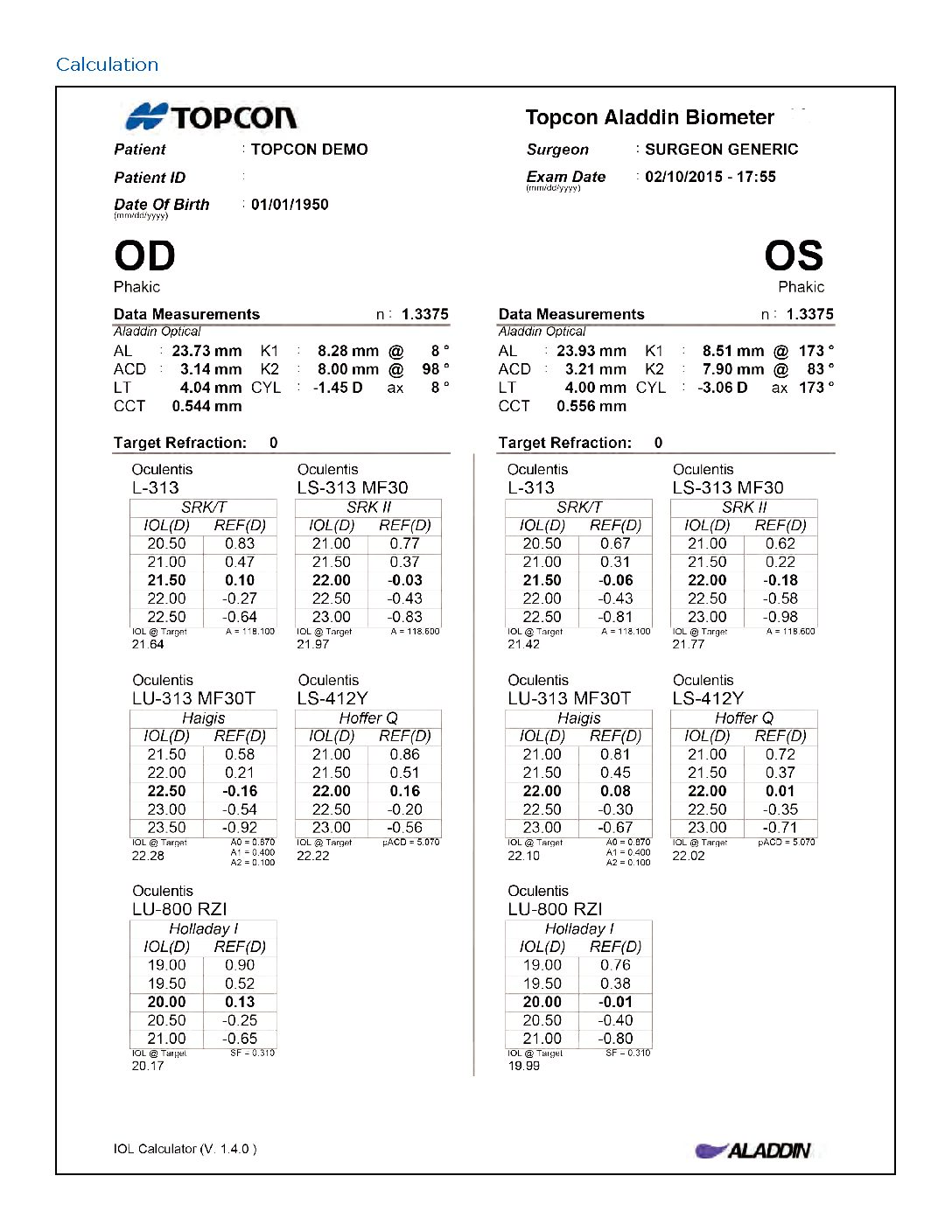

Calculation
-

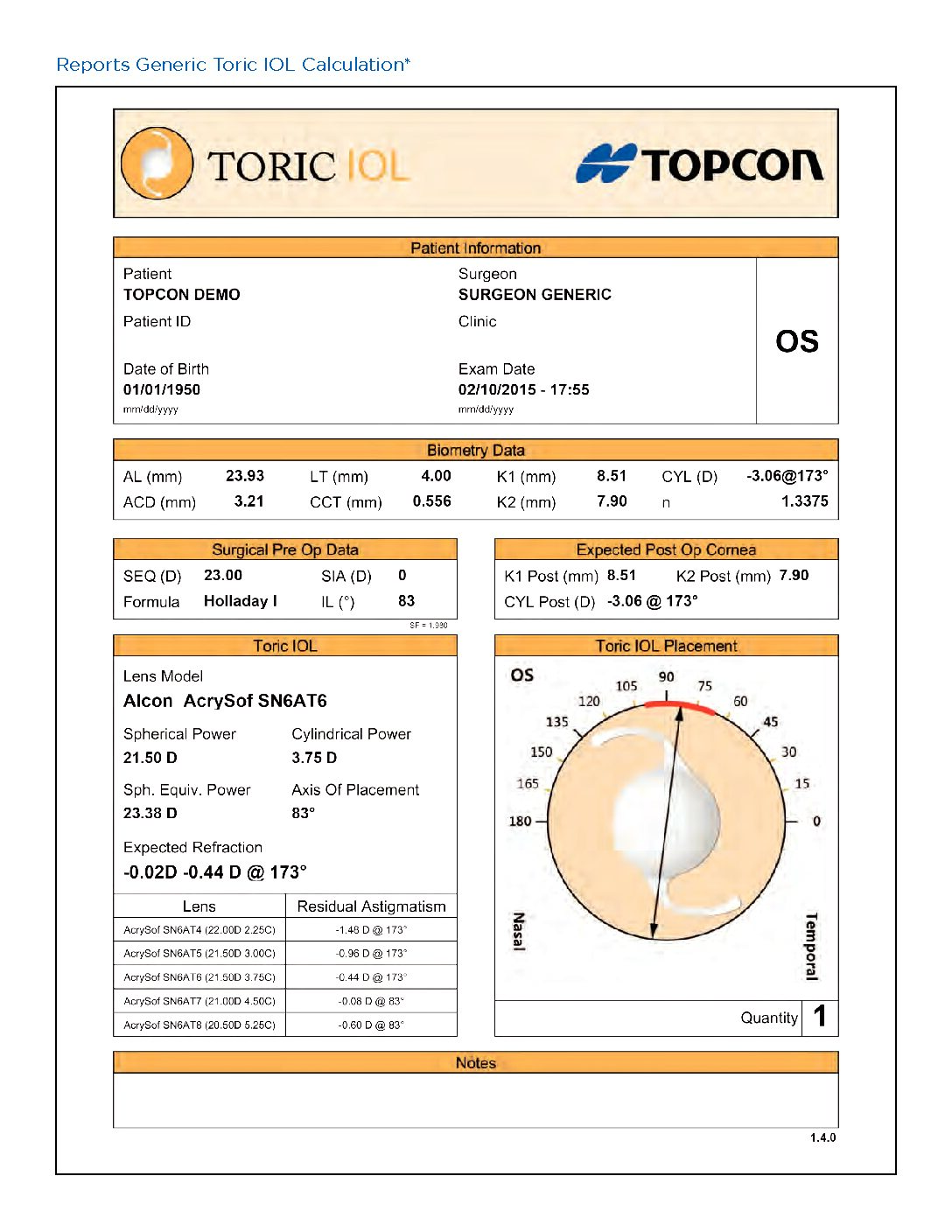

Reports Generic Toric IOL Calculation
-

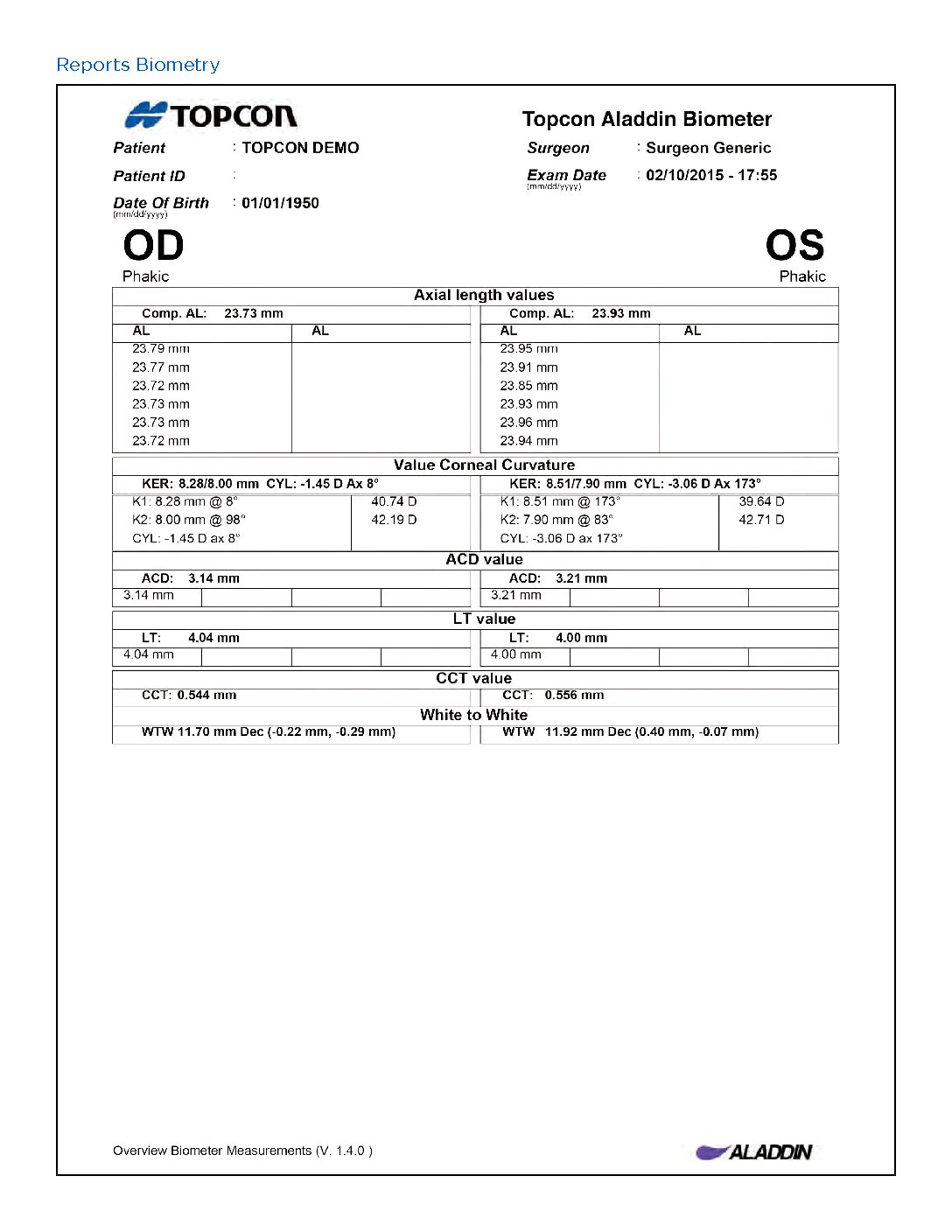

Reports Biometry
-

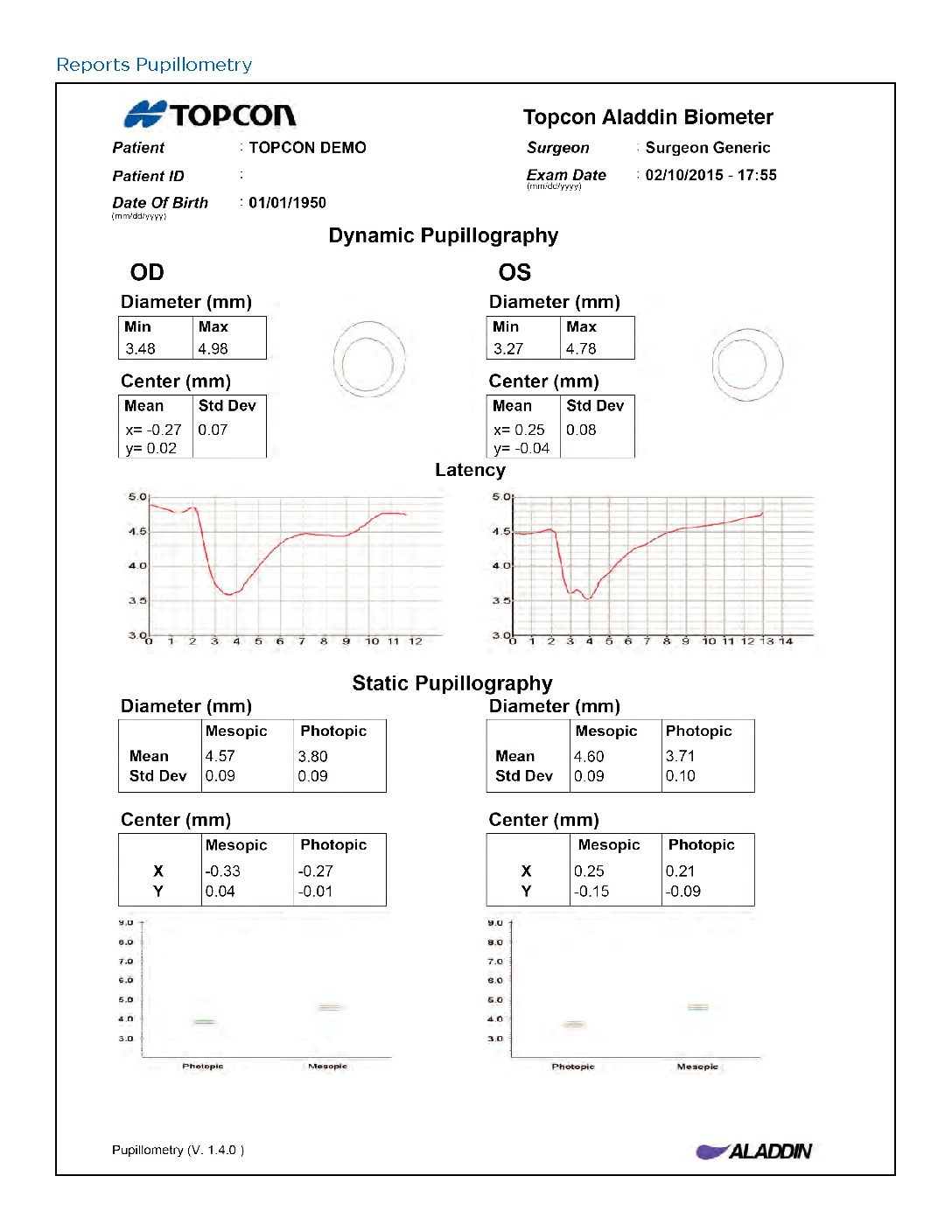

Reports Pupillometry
-
Product Demo
Aladdin Optical Biometer
Not Available
