Auto Chart Projector

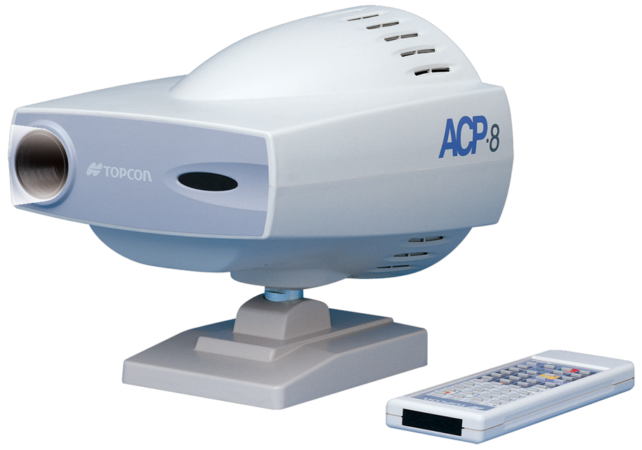

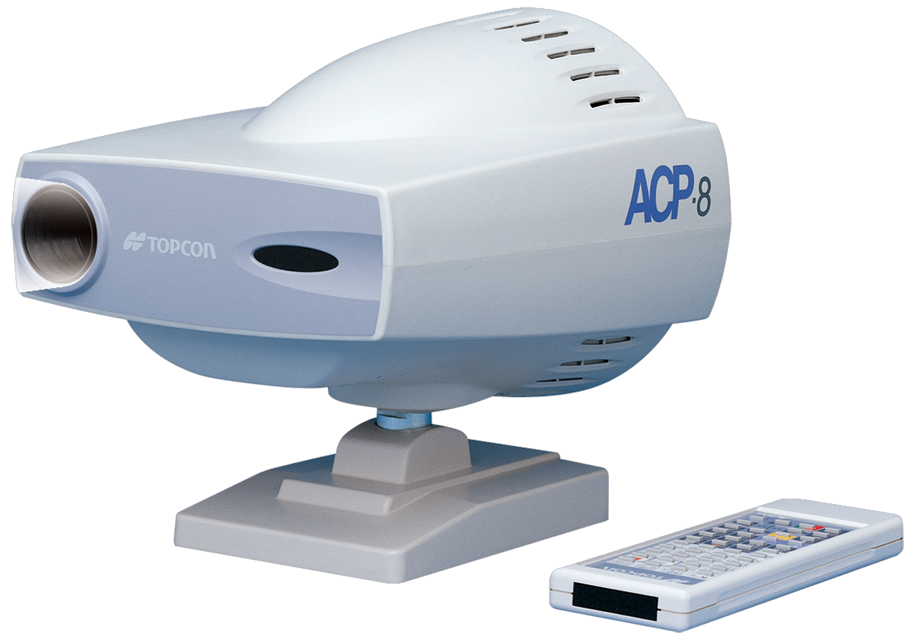

The Topcon ACP-8 Chart Projectors provide sharp image and image projection with a fast chart disk rotation.

The ACP-8 chart projector features 30 charts (including ETDRS), with the fastest chart rotation on the market including a high-quality display screen. The enlarged projection size of 330×270 leaves a clear and wide view. The Topcon ACP-8 Chart Projector shows five optotypes per line, and the possibility to mask visual acuity lines or a single optotype.

Key Features

  • 30 built-in charts

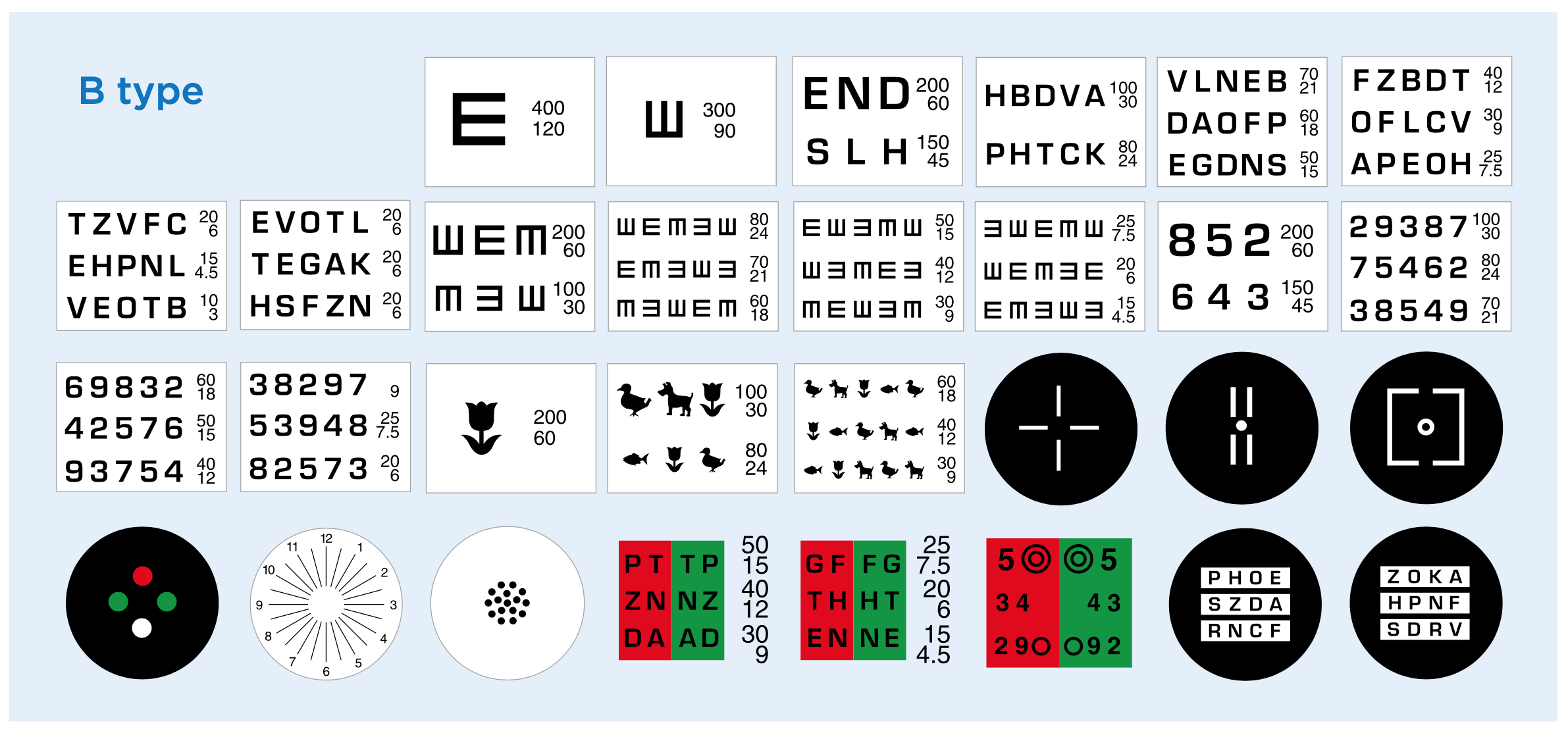

  • Available in 4 different chart types
  • Easy distance calibration
  • Compatible with Topcon CV-5000 phoropter
Refracting distance 2.9 to 6.1 m
Projection magnification 30x (in 5 m refraction)
Projection size 330 x 270 mm, Ø 300 mm (in 5 m refraction)
Number of charts 30
Chart change-over 1 frame / 0.03 sec
Number of masks Open 1, Horizontal line 5, Vertical line 8, Single isolation 21, R/G 1
Mask change-over 1 frame / 0.03 sec
Program step 2 types, max 30 steps available
Automatic shut-off After 10 min
Masking Yes
IR connection Yes

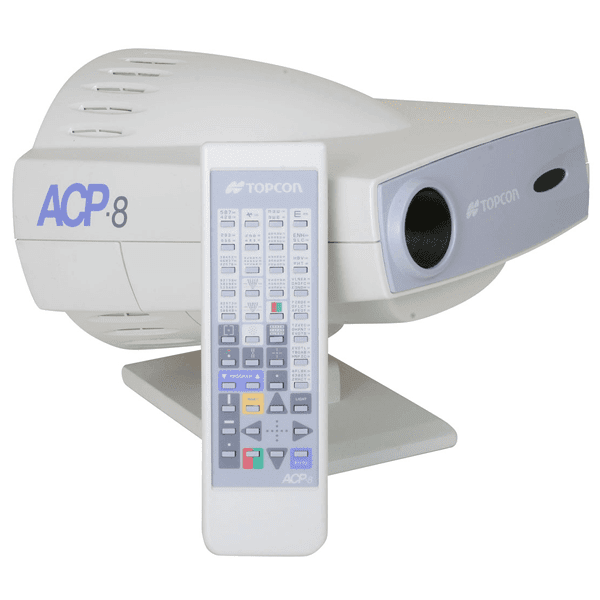

Remote controlled Yes

Not Available

Not Available


Polarized Metal Screen
550 x 450mm with non-glare finish


Wall mount bracket
